Home » More » UPS & Power » UPS Accessories » APC AP7950B

[AP7950B] APC Rack PDU Switched Zero U 10A 230V (16) C13

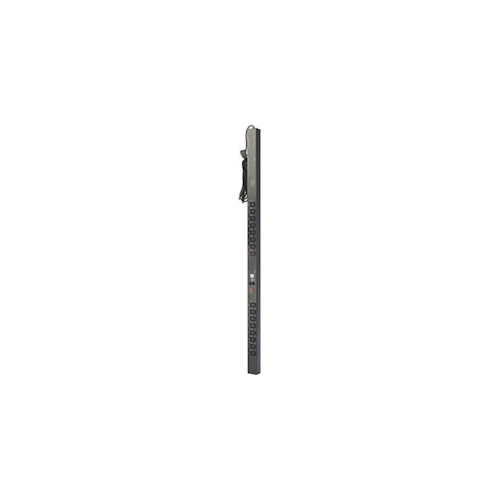

APC Rack PDU Switched Zero U 10A 230V (16) C13 Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$1,986.45
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
AP7950B
Our Part #:
AP7950B
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About AP7950B Price Match AP7950B
APC AP7950B, Metered, Switched, 0U, Vertical, Black, 13 AC outlet(s), C14 coupler

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)

Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.


Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.

Power Delays

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Integrates with StruxureWare Data Center Expert

An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Design
PDU types
A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.
Metered, Switched
Rack capacity
The spase that device fill in rack.
0U
Mounting
What size the mounting head of the product is, to couple it with a camera.
Vertical
Product colour
The colour e.g. red, blue, green, black, white.
Black
Ports & interfaces
AC outlets quantity
The number of sockets in the device where AC electrical power can be connected.
13 AC outlet(s)
Power plug
A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection.
C14 coupler
Output connections
Sixteen IEC 320 C13 outlets
Features
LED indicators
Y
Cable length
How long the cable is.
3.05 m
Certification
VDE, CE, EAC, EN55022, EN55024, AS/NZS CISPR 22
Management features
Monitoring
Current, Power, Voltage
Outlet control
Lock-out, Recycle, Turn off, Turn on
Power
Nominal input voltage
The voltage which the manufacturer recommends that the device needs to operate normally.
200-230 V
AC input frequency
47/63 Hz
Maximum current
The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
10 A
Nominal output voltage
The voltage which the manufacturer states that the device can produce.
230 V
Load capacity
2300 VA
Maximum input current per phase
10 A
Maximum total current draw per phase
10 A
Maximum power
The maximum power that can be put into or produced by the device.
2300 W
Weight & dimensions
Dimensions (WxDxH)
Dimensions of the product (Width x Depth x Height).
55.6 x 43.9 x 1244.6 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4.3 kg
Packaging data
Package dimensions (WxDxH)
152.4 x 127 x 2133.6 mm
Package weight
Weight of the packaged product.
5.2 kg
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 45 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 4500 m
Non-operating altitude
0 - 15000 m
Operating temperature (T-T)
23 - 113 °F
Technical details
Sustainability certificates
RoHS
