Home » More » UPS & Power » Batteries » APC AP6020A

[AP6020A] APC Rack PDU, Basic, 0U/1U, 100-240V/20A, 22

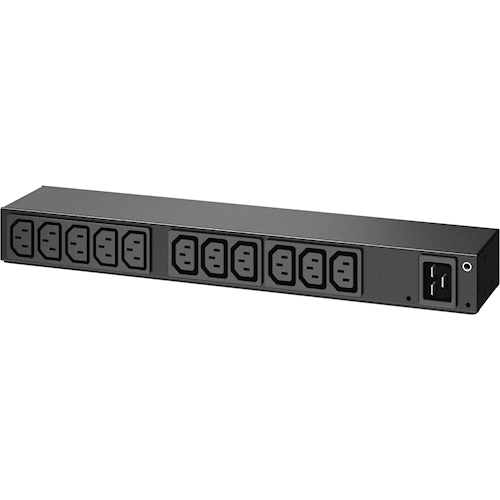

APC Rack PDU Basic 0U/1U 100-240V/20A 22 Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$135.32
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
AP6020A
Our Part #:
AP6020A
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About AP6020A Price Match AP6020A
APC AP6020A, Basic, 0U/1U, Horizontal/Vertical, Black, 13 AC outlet(s), IEC 320 C13

AP6020AFeatures

- Rack PDU, Basic, 0U/1U, 100-240V/20A, 220-240V/16A, (13) C13
- Reliable rack power distribution
- Includes : Installation guide , Safety guide

Marketing Features

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Agility

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Total Cost of Ownership

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Design
PDU types
A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP.
Basic
Rack capacity
The spase that device fill in rack.
0U/1U
Mounting
What size the mounting head of the product is, to couple it with a camera.
Horizontal/Vertical
Product colour
The colour e.g. red, blue, green, black, white.
Black
Ports & interfaces
AC outlets quantity
The number of sockets in the device where AC electrical power can be connected.
13 AC outlet(s)
Output connections
IEC 320 C13
Features
Certification
cUL Listed, CE, EAC, IRAM, PSE, UL Listed, VDE, REACH
Power
Nominal input voltage
The voltage which the manufacturer recommends that the device needs to operate normally.
100-240 V
AC input frequency
50 - 60 Hz
Maximum current
The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge.
20 A
Load capacity
3680 VA
Maximum input current per phase
16 A
Maximum total current draw per phase
16 A
Maximum power
The maximum power that can be put into or produced by the device.
3680 W
Weight & dimensions
Dimensions (WxDxH)
Dimensions of the product (Width x Depth x Height).
44 x 93 x 388 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.5 kg
Packaging data
Package dimensions (WxDxH)
210 x 76 x 436 mm
Package weight
Weight of the packaged product.
2.02 kg
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-15 - 60 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Technical details
Sustainability certificates
RoHS
