Home » Computer Peripherals & Accessories » Laptop Accessories » Docks & Port Replicators » StarTech TB3DOCK2DPPD

[TB3DOCK2DPPD] StarTech Dual 4K Monitor Thunderbolt 3 Dock - Dual 4K 60Hz - USB Type C - 6x USB 3.0 Ports Including Fast Charge - SD Card Reader - Power Delivery 85W

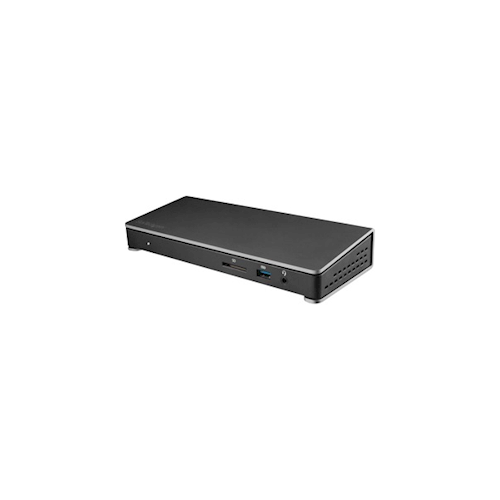

StarTech Dual 4K Monitor Thunderbolt 3 Dock Dual 4K 60Hz USB Type C 6x USB 3.0 Ports Including Fast Charge SD Card Reader Power Delivery 85W Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$178.19
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
TB3DOCK2DPPD
Our Part #:
TB3DOCK2DPPD
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About TB3DOCK2DPPD Price Match TB3DOCK2DPPD
StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 85 W, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3,IEEE 802.3ab,IEEE 802.3u

Laptop Docking Station | Mac & Windows | SD Card Reader | USB-C to DP Cable | 85W PD

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

1 x 4K monitor via the DP Port

1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)

OR

1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

Plenty of Ports Including SD Card Reader

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery

Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

TB3DOCK2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

- THUNDERBOLT 3 CERTIFIED DOCK: Aluminum, 40Gbps dual 4K 60Hz DP & TB3 (USB-C) video output or single monitor 5K 30Hz, 85W PD, USB 3.0 Hub, SD 4.0 card reader, Gigabit Ethernet & Headset port
- 85W POWER DELIVERY: Thunderbolt 3 Dock can power and charge Ultrabooks & workstation laptops such as MacBook Pro (15 & 16), MacBook Air, HP, Lenovo ThinkPad & Dell XPS using macOS and Windows.
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected"
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
USB Power Delivery
Y
USB Power Delivery up to
85 W
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
Thunderbolt 3 ports quantity
2
Combo headphone/mic port
Y
Headphone outputs
Number of sockets /ports where headphones are connected.
1
Headphone connectivity
How headphones connect to a device e.g. wirelessly or via a cable and connector.
3.5 mm
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Y
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Y
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Performance
Card reader integrated
The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Y
Compatible memory cards
Types of memory cards which can be used with this product.
MMC,MicroSDHC,MicroSDXC,SD,SDHC,SDXC
Data transfer rate
Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations.
40 Gbit/s
Maximum digital resolution
5120 x 2880 pixels
Product colour
The colour e.g. red, blue, green, black, white.
Black
UASP support
Y
Housing material
What the casing of the product is made of.
Aluminium
Certification
CE, FCC, REACH
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Input current
2.5 A
Power supply type
The type of power supply which this product uses.
External
Output voltage
20 V
Output current
9 A
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
180 W
Power plug type
Type N
Compatible power plug types
AU, JP, US
Software
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac compatibility
Product can be used with Apple Mac software and/or hardware.
Y
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Sustainability
Sustainability certificates
RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
87 mm
Depth
The distance from the front to the back of something.
222 mm
Height
The measurement of the product from head to foot or from base to top.
34 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
492 g
Packaging data
Package width
The distance from one side of the packaging to the other.
145 mm
Package depth
The distance from the front to the back of the packaging.
295 mm
Package height
The distance from the top to the bottom of the packaging.
90 mm
Package weight
Weight of the packaged product.
1.5 kg
Packaging content
Cables included
AC, Thunderbolt, USB Type-C
AC adapter included
Y
Manual
Y
Logistics data
Products per master (outer) case
10 pc(s)
Master (outer) case width
31 cm
Master (outer) case length
48 cm
Master (outer) case height
31.4 cm
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226
