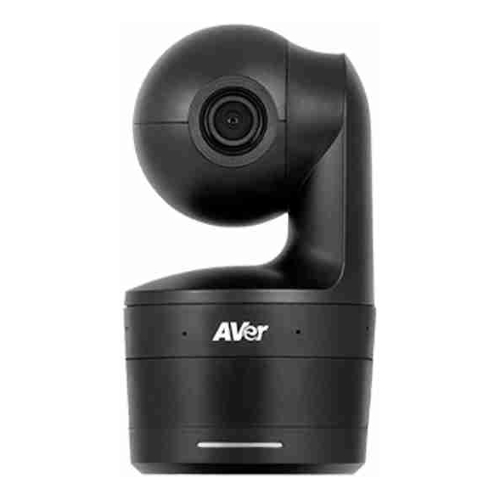

Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10's three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher's speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.
Specification
Camera
1/2.8' 1080p Low Lux CMOS Image Sensor
Output Resolution of 1080p/60 (IP Streaming & USB)
2 Megapixels
0.5 Lux (IRE50, F2.0, 30fps) Minimum Illumination
50 dB S/N Ratio
TV Lines 800 (Center/Wide)
Gain: Auto, Manual
TV Lines: 800 (Center/Wide)
Exposure Control: Auto, Manual, WDR
White Balance: Auto, Manual
x2 Digital Zoom
Shutter Speed:
1/4 to 1/10,000 sec (60 Hz)
1/3 to 1/10,000 sec (50 Hz)
WDR: Yes
Optical Zoom: 3X
Pan/Tilt Angles: Pan : 170, Tilt : 90
Preset Speed: Pan : 200/sec, Tilt : 200/sec
Camera Control - Protocols: VISCA (IP), CGI (IP), USB
Tracking Modes
Presenter Mode
Zone Mode
Hybrid Mode
Gesture Control
Tracking On/Off, Full/Upper Body
Audio
Channels
Line in: 2ch Stereo
Mic in: Mono
Sample Rates
48, 32, 16, 8 KHz
Codecs
AAC-LC (48, 32, 16, 8K), PCM (48K)
Microphones
x2 (Omnidirectional) Built-in Microphones
Pickup Range of 5m
Noise Suppression
Sensitivity of -33 dBFS
Frequency Response of 30 Hz to 20 KHz
Maximum SPL 129 dB SPL at 0.5 m
Interface
Video Outputs/Audio Outputs: IP, USB
Audio Inputs: Line in, Mic in
