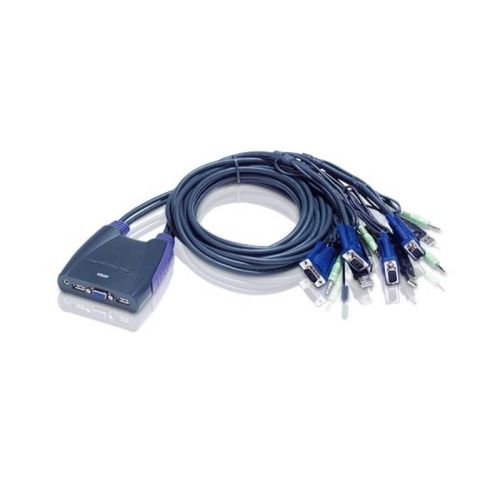

The CS64US takes a giant step forward from prior cable KVM models in the Petite series, by offering built-in cables,
USB peripheral sharing, and a firmware upgrade function that allows you to keep up with latest available versions.
Furthermore, the CS64US features enhanced Video DynaSyncâ„¢ technology,
Which stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution.
The CS64US also offers multiplatform support and computer selection via hotkeys to provide the ultimate in desktop convenience.
| Computer Connections | 4 | ||
| Port Selection | Hotkeys | ||
| Connectors | Console Ports | Keyboard | 1 x USB Type A Female (White) |
| Video | 1 x HDB-15 Female (Blue) | ||
| Mouse | 1 x USB Type A Female (White) | ||
| Speaker | 1 x Mini Stereo Jack Female (Green) | ||
| KVM Ports |
Keyboard/ Mouse |
4 x USB Type A Male (White) | |
| Video | 4 x HDB-15 Male (Blue) | ||
| Speaker | 4 x Mini Stereo Jack Female (Green) | ||
| LEDs | Selected | 4 (Green) | |
| Cable Length | 2 x 0.9 m; 2 x 1.2 m | ||
| Emulation | Keyboard/Mouse | USB | |
| Video | 2048 x 1536; DDC2B | ||
| Scan Interval | 1-99 secs. (default 5 secs.) | ||
| Environment | Operating Temp. | 0 - 50°C | |
| Storage Temp. | -20 - 60°C | ||
| Humidity | 0-80% RH, Non-condensing | ||
| Physical Properties | Housing | Plastic | |
| Weight | 0.77 kg | ||
|
Dimensions ( L x W x H ) |
10.90 x 9.72 x 2.54 cm | ||
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
