Home » Cables & Adapters » Data / USB Cables » USB Type-C / 3.1 Cables » StarTech US1GC301AU2R

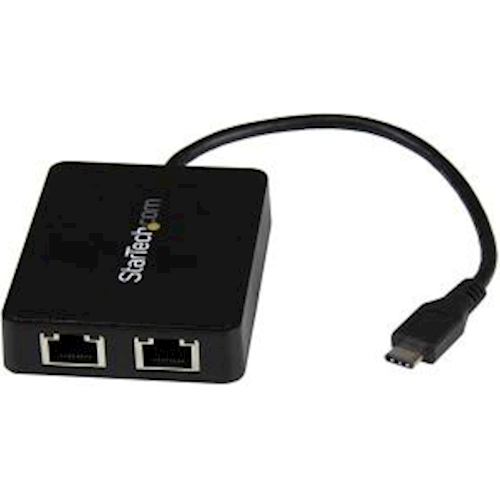

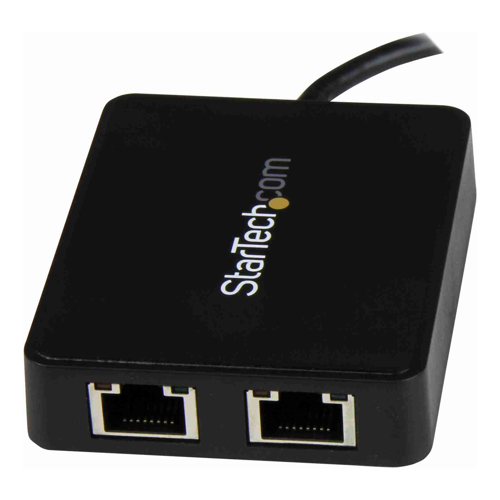

[US1GC301AU2R] StarTech STARTECH.COM USB-C TO DUAL Gigabit ETHERNET ADAPTER, USB3.0(1), BLACK, 2YR

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$122.47

(Inc. GST)

Availability:

Online Only

Est. Delivery:

1-3 days

Brand:

StarTech

Man. Part #:

US1GC301AU2R

Our Part #:

US1GC301AU2R

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About US1GC301AU2R Price Match US1GC301AU2R

StarTech.com USB-C to Dual Gigabit Ethernet Adapter with USB (Type-A) Port, Wired, RJ-45, USB, 5000 Mbit/s, Black

Description
Specifications

Now, you can add wired network access through the USB-Câ¢ or Thunderboltâ¢ 3 port on your laptop or desktop computer, and connect to your USB 3.0 (Type A) devices with ease. This Gigabit Ethernet network adapter gives you access to two reliable GbE ports, and without having to install drivers. It's a great companion for your MacBook, Chromebook Pixelâ¢, Dellâ¢ XPSâ¢ 12, Dell Latitudeâ¢ 12 7000 Series 2-in-1 or another device that has a USB Type-Câ¢ port.

Powerful Gigabit network connections
The network adapter leverages the 5Gbps speed of USB 3.0 (also known as USB 3.1 Gen 1) to deliver the full bandwidth of your Gigabit network connection, without bottlenecks. This saves you time by making it easier to access very large files over your network at Gigabit speed.

For added versatility, the network adapter supports a range of convenient features, such as Wake-On-LAN, VLAN Tagging, Crossover Detection and Auto-Correction (Auto MDIX), Checksum Offload (IPv4, IPv6, TCP, UDP), and Large Send Offload.

Add connectivity to your USB devices
Some computers with USB Type-C only offer one USB-C port for external connectivity, which will not connect with your existing USB Type-A devices. This Gigabit adapter features an integrated USB 3.0 Type-A port, so while the adapter is connected to your computer to provide network access, you can also connect to USB peripherals that need a USB Type-A connector. The network adapter is also backward compatible with USB 2.0 systems.

Native driver support makes installation easy
Get up and running quickly. The network adapter provides native driver support to ensure a quick setup. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset offers native driver support in Chrome OSâ¢ and WindowsÂ® 8.1, and supports Mac OSX (10.10) with driver installation.

Trouble-free connections through USB-Type-C
The USB Type-C connector is smaller and easier to use than previous USB connectors. Itâs a reversible plug, so you can connect to your devices with either side facing up. You can insert the cable the right way every time, without frustration or the risk of port damage.

The US1GC301AU2R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Ports & interfaces

Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Host interface

Interface that enables a host controller to communicate with a driver.

RJ-45

Interface

Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.

USB

Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

USB ports quantity

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

USB version

Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.

3.2 Gen 1 (3.1 Gen 1)

USB pass-through

Network

Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

5000 Mbit/s

Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u

Ethernet LAN

An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.

10,100,1000 Mbit/s

Cabling technology

Type of cable technology performance.

10/100/1000BaseT(X)

Copper ethernet cabling technology

10BASE-T,100BASE-TX,1000BASE-T

Auto MDIX IEEE

Full duplex

A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.

Jumbo frames support

Jumbo frames

4000

Design

Product colour

The colour e.g. red, blue, green, black, white.

Black

Internal

The product is built in.

Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

VIA VL812 + ASIX AX88179

LED indicators

Activity, Link

Certification

CE, FCC

Power

USB powered

The device can be powered via a USB connection.

System requirements

Windows operating systems supported

Windows vesions wich can be used with the device.

Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64

Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Server operating systems supported

Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 50 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 Â°C

Operating relative humidity (H-H)

20 - 80%

Sustainability

Sustainability certificates

RoHS

Weight & dimensions

Width

The measurement or extent of something from side to side.

60 mm

Depth

The distance from the front to the back of something.

75 mm

Height

The measurement of the product from head to foot or from base to top.

16 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

54 g

Packaging data

Package width

The distance from one side of the packaging to the other.

172 mm

Package depth

The distance from the front to the back of the packaging.

144 mm

Package height

The distance from the top to the bottom of the packaging.

30 mm

Package weight

Weight of the packaged product.

100 g

Other features

Housing material

What the casing of the product is made of.

Plastic

Cable length

How long the cable is.

0.1 m
