[PEX8M2E2] StarTech Dual M.2 PCIe SSD Adapter - x8 PCIe 3.0

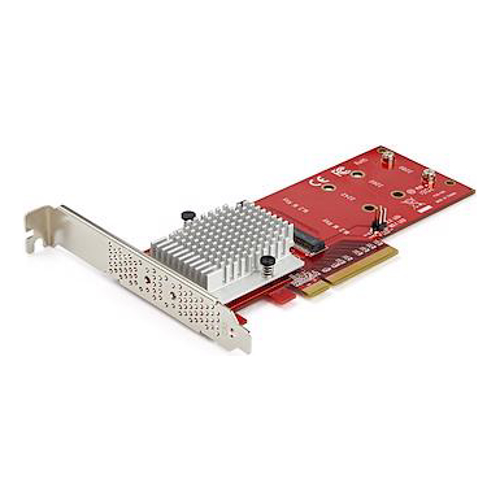

StarTech Dual M.2 PCIe SSD Adapter x8 PCIe 3.0 Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$312.92
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
PEX8M2E2
Our Part #:
PEX8M2E2
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About PEX8M2E2 Price Match PEX8M2E2
StarTech.com Dual M.2 PCIe SSD Adapter Card - x8 / x16 Dual NVMe or AHCI M.2 SSD to PCI Express 3.0 - M.2 NGFF PCIe (M-Key) Compatible - Supports 2242, 2260, 2280 - JBOD - Mac & PC, PCIe, M.2, PCI 3.0, Red, 3336103 h, CE, FCC, TAA, REACH

PCI Express 3.0 M.2 SSD Adapter Card | For PCIe NVMe and PCIe AHCI M.2 SSDs

Upgrade your system speed and performance with this Dual M.2 PCIe SSD Adapter. It lets you add two high performance, enterprise-class PCIe 3.0 M.2 SSDs (NVMe and AHCI) into the PCIe 8-lane or larger slot of your desktop workstation or server.

Boost System Performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. With the M.2 PCIe based drives in place, the adapter increases your storage capacity and gives your computer a significant speed boost, enhancing data transfer rates.

Access two M.2 PCIe SSDs simultaneously

The dual M.2 to PCIe expansion card employs a high-speed ASM2824 switch, allowing you to access two drives at the same time. Since the adapter card does not rely on PCIe bifurcation, it can easily be integrated into all systems, new and legacy.

The M.2 PCI express adapter also gives you the flexibility to access your M.2 PCIe SSDs individually. Or, you can utilize software RAID to build a RAID array to add redundancy or enhance system performance.

Wide System Compatibility

The adapter connects directly to your computer motherboard to support two PCIe M.2 SSDs through a x8 PCIe expansion slot. The adapter is compatible with PCIe 3.0 motherboards and is backward compatible with PCIe 2.0 and PCIe 1.0.

Supports a Wide Range of PCIe M.2 SSDs

The PCIe M.2 NGFF (M Key) adapter supports PCIe 3.0 NVMe and PCIe-AHCI M.2 SSDs including 2242, 2260, and 2280 drives, supporting the most common drive sizes: 42, 60, and 80 mm lengths.

Easy to Install

The expansion card comes with a full-profile bracket pre-installed, and includes a half-height / low-profile bracket, for installation in small form-factor computers.

Vented Brackets

Vented brackets on the PCIe M.2 NGFF SSD adapter card increases air flow to assist in heat dissipation.

The TAA compliant PEX8M2E2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2
- WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo, 950 Pro, SM951, & other 2242, 2260, 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI)
- BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots, PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows, Linux, and macOS incl. legacy.
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCIe
Output interface
The socket (port) where the output connectors are connected.
M.2
Expansion card standard
PCI 3.0
Number of M.2 (M) slots
2
SATA connector insertion cycles
60
Design
Internal
The product is built in.
Y
Product colour
The colour e.g. red, blue, green, black, white.
Red
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
3336103 h
Hot-swap
Y
Certification
CE, FCC, TAA, REACH
Features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
ASMedia - ASM2824
Data transfer rate (max)
8 Gbit/s
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Y
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-25 - 70 °C
Operating relative humidity (H-H)
15 - 90%
System requirements
Supported storage drive heights
22 mm
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
16 mm
Depth
The distance from the front to the back of something.
159 mm
Height
The measurement of the product from head to foot or from base to top.
69 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
88 g
Packaging data
Quantity
The number of products there are.
1
Mounting brackets included
Y
Screws included
Y
User guide
Y
Package width
The distance from one side of the packaging to the other.
157 mm
Package depth
The distance from the front to the back of the packaging.
217 mm
Package height
The distance from the top to the bottom of the packaging.
40 mm
Package weight
Weight of the packaged product.
157 g
Logistics data
Products per master (outer) case
40 pc(s)
Master (outer) case width
34 cm
Master (outer) case length
46 cm
Master (outer) case height
49.5 cm
