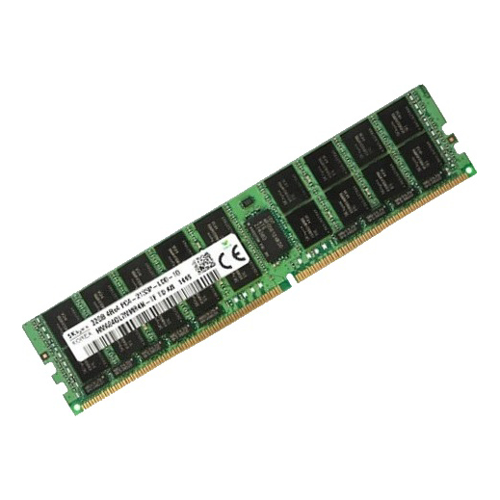

[HMA84GL7AMR4N-TF] SK Hynix SKHYNIX 32GB 4DRx4 PC4-2133P-LD1-11

A Memory Moule or RAM (Random-Access Memory) stick is a printed circuit board on which memory integrated circuit board on which memory integrated circuits are mounted. Memory modules permit easy installation and replacement in electronic systems, especially computers such as personal computers, workstations and servers.

Proven DRAM module station in the global market.

SK Hynix's memory modules are designed for a wide range of applications to deliver the best performance with low power requirements.

The common architecture for desktop computers is the dual-in-line memory module (DIMM). Because of space limitations, laptops use small outline DIMMS (SODIMMS). The modules have notches in different places so that they cannot be inserted into the wrong slots. Many computers use 8-bit RAM chips, while others use 9-bit chips. The 9-bit is a parity but for detecting errors. High-end servers and workstations may use error-correcting memory (ECC) and registered DIMMS (RDIMMS).

Registered DIMM

• Include a register for enhancing clock, command and control signals
• Error coorection available by added 8-bit parity signals
• Supports x4/x8 Organisation / up to 2 ranks per DIMM and 3DPC configuration
• Application: Server

Load Reduced DIMM

• Include a register for enhancing clock, command and control signals
• Enhanced data signal by placing data buffer
• Best solutions for achieveing high density with high speed
• Supports x4 Organisation / up to 4 ranks per DIMM and 3DPC
• Application: Server

UDIMM

Unbuffered DIMM

• No buffer or register: smaller latency value
• Supports x8 / x16 Organisation / up to 2 ranks per DIMM and 2DPC configuration
• Application: Desktop

Small Outline DIMM

• Smaller than normal DIMMS
• Supports x8 / x16 / up to 2 ranks per DIMM and 2DPC configuration
• For systems with limited space issues
• Application: Laptop

Error Correction Code UDIMM / SODIMM

• Single error correction and detection available
• Supports x8 up to 2 rankss per DIMM
• Application: High-end desktop, High-end laptop, Server
