[40A40090AU] Lenovo ThinkPad OneLink + Dock

The ThinkPad OneLink+ Dock (40A4), powered by Lenovo’s revolutionary OneLink+ technology transforms your new ThinkPad into a full featured machine in the office or at home. Not only does the new convenient OneLink+ connector deliver super-fast data transfers with USB 3.0 and up to Ultra High Definition (UHD) video but it also charges your notebook, cell phone and tablet while you work or play!

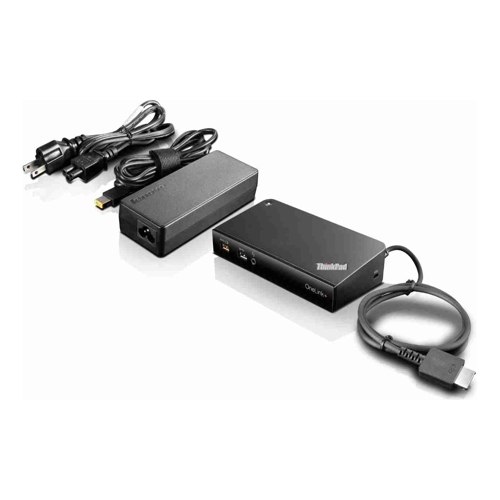

Unlike USB docks the OneLink+ Dock delivers video with no compression, no drivers and no impact on image quality and notebook performance. Simply connect your notebook with the ThinkPad OneLink+ Dock and get connected to power, Internet and workplace accessories through a convenient single connector. Expect nothing short of outstanding value with connections for two external displays, a keyboard, a mouse, and a printer. It also comes with a ThinkPad 90w slim tip AC Adapter.

The docking station comes equipped with a stereo/microphone combination audio port and two USB 3.0 ports on the front panel with one of those as an “always (power) on” port for mobile device charging. Meanwhile, the rear panel has two USB 2.0 ports and two USB 3.0 ports, allowing for maximum device connectivity. The OneLink+ dock also comes with a 10/1000 Gigabit Ethernet port, one VGA port, and two DisplayPort 1.2 ports for up to 3 video outputs* with a maximum 4k2k resolution**.

Features includes:

• A single OneLink+ cable enables all docking functions while delivering continuous power, allowing you to boost your productivity in no time.

• Up to 4k video output allows you to enjoy a vivid video experience with your brand new ThinkPad Ultrabook

• Power button on dock mirrors system power button

• Gigabit Ethernet (10/100/1000) with Boot over LAN support*** on all ThinkPad OneLink+ systems

Notes:

• *Total maximum 3 monitors can be output including system LCD

• ** OneLink+ dock is capable to support up to 4k2k(3840x2160) resolution. Actual video output on the dock is based on system video performance since the video signal is passing through from system to the OneLink+ dock. For detailed information please visit: Display and Video Output Configurations - Docking Stations

• *** Gigabit Ethernet by USB, installing a driver may be required. Ensure your system BIOS is the latest version, or upgrade BIOS to the latest by Lenovo System Update.
