Home » Networking » Networking Accessories » Other Accessories » Cisco IE-1000-8P2S-LM

[IE-1000-8P2S-LM] Cisco IE-1000 GUI Based L2 PoE switch

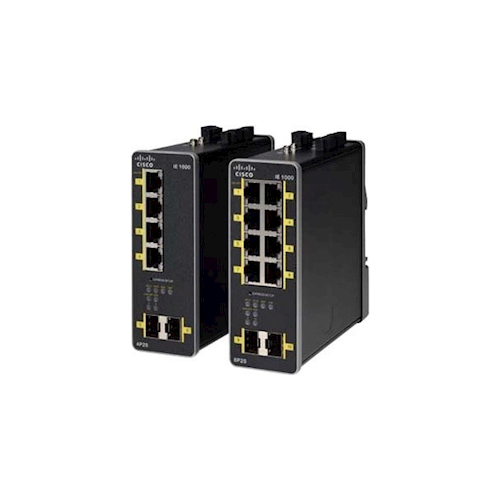

Cisco IE-1000 GUI Based L2 PoE switch Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$3,616.57
(Inc. GST)
Availability:

Est. Delivery:
Brand:
Man. Part #:
IE-1000-8P2S-LM
Our Part #:
IE-1000-8P2S-LM
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About IE-1000-8P2S-LM Price Match IE-1000-8P2S-LM
Cisco IE-1000-8P2S-LM, Managed, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)

The Cisco® Industrial Ethernet (IE) 1000 Series Switches are compact rugged switches aimed to operational technology (OT) users with limited IT network knowledge. The IE 1000 Series Switches provide an easy transformation from the legacy factory to digital solution. For machine builders and machine-to-machine (M2M) solutions is an attractive entry level product as a GUI-based, lightly-managed switch. The IE 1000 is a good fit for locations with harsh temperatures and small spaces, and is Power over Ethernet (PoE) capable with and zero IT management.

The IE 1000 is ideal for industrial Ethernet applications where small and easy-to-be-managed hardened products are required, including factory automation, intelligent transportation systems, city-surveillance programs, building automations etc.

The Cisco IE 1000 Series Switches complement the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000, IE 3000, IE 4000 and IE 5000 Series managed Switches.

The IE 1000 can be easily installed on your network. Through a user-friendly web device manager, the IE 1000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced and secure multiservices over industrial networks.

Features and Benefits

The Cisco IE 1000 Series Switches are designed for low cost, low ports, and small sizes. They offer:

- Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet (GE), copper and fiber uplinks options
- Easy integration: Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
- Fast startup time: Starts 30 seconds from cold boot
- Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
- Security: secure access; port-security
- Minimize data load: VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
- Lightly-managed: Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
- Gigabit uplink: Two fiber-optic SFP based. uplink for up to 50 miles (80 kilometers) links
- Industrial PoE: Up to eight PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models
- Redundant voltage feeds, alarm relays support and DIN rail mount
- Industrial environmental compliance and certifications
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Web-based management
Using a website/web application to manage something.
Y
System event log
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SFP
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Port mirroring
Y
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Link aggregation
Y
Spanning tree protocol
Y
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Y
Optical fiber
Fiber ethernet cabling technology
1000BASE-X
Transmission distance (max)
80 km
Security
DHCP features
DHCP server,DHCP snooping
IGMP snooping
Y
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
SNMP,SSH
Static port security
Y
BPDU filtering/protection
Y
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP30
DIN rail mounting
Y
Safety
List of regulatory safety standards for all countries in which this product has been certified.
UL/CSA 60950-1, EN 60950-1, IEC 60950-1, NOM - NOM-019-SCF1, UL/CSA/IEC/EN 61010-2-201, CE
Electromagnetic compatibility
List of countries and their respective regulatory agency standards with which the product complies.
FCC 47 CFR 15 A, EN 55022/CISPR 22 A, EN 55016-1-1, -1-4, -2-3 AVCCI A, RoHS, AS/NZS CISPR 22 A, AS/NZS CISPR 24, CISPR11 Class A, CISPR22 A, ICES 003 A, KCC, CE, RCM, EAC, Anatel, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29
Performance
Memory type
Type of memory in the device e.g. DDR3, SRAM (Static RAM).
DDR2-SDRAM
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
128 MB
Flash memory
160 MB
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
374052 h
Power
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
10.6 W
Power consumption (max)
The maximum amount of power used by the device.
205.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) power per port
25.5 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-20 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
45.7 mm
Depth
The distance from the front to the back of something.
134 mm
Height
The measurement of the product from head to foot or from base to top.
127 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
840 g
Other features
Input voltage
The voltage (V) which is required to power the product.
48 - 54 V
