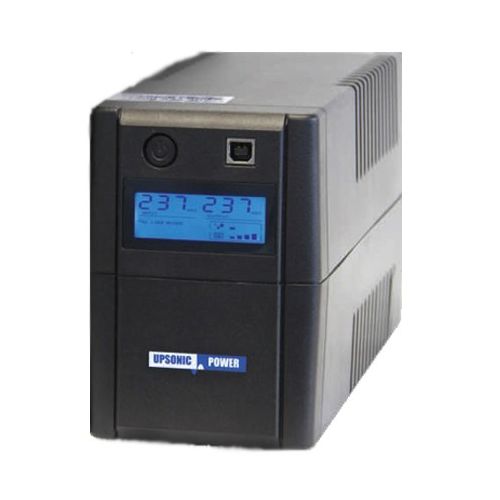

[DSV600] Upsonic Domestic Series 600VA UPS

The DSV UPS is a high quality, compact and affordable system for workstations, small business, POS Equipment, Roller Shutters and PC's.

This UPS features a state of the art automatic voltage regulator (AVR - Buck and Boost), which enables the UPS to maintain a secure and regulated output voltage, without utilising batteries, for mains voltages between 207VAC and 265VAC.

The DSV Series has a voltage surge/spike suppressor and noise filter, providing continuous power protection under all operating conditions. In the event of a total power failure the Domestic Series will provide <5 mSec change over to battery back-up from the maintenance free internal batteries.

When the DSV Series is utilised with intelligent shutdown software, it is able to provide detailed information on the status of input power quality, record power events and perform a fully automatic system save and close-down in the event of a power failure.

A RJ11/RJ45 network connection ACA approved telephone line filter is integral with the DSV Series UPS to protect sensitive Phone, fax and modem equipment, from power disturbances entering via the phone lines.

• Microprocessor control: Guarantees high reliability and efficient operation
• Equipped with Buck and Boost AVR: To stabilise input voltage & extend battery life
• Built-in DC start function: Enables UPS to be started without AC power supplied
• USB Communication Port: With Free Software (Download from the Internet)
• Auto restart on AC recovery
• Compact size, light weight: Saves space and money
• Provides Modem/Phone-line Surge Protection: Provides Overload Protection
• Comprehensive Warranty: 3 year warranty (2 years on battery)
• Graphic LCD Display: Easy to understand
• Green Function: < 100 Watt

• CAPACITY: 600VA/360W
• INPUT:
  • Voltage: 230VAC
  • Voltage Range: 162 - 290VAC
  • Frequency: 50 - 60Hz (Auto Sensing)
• OUTPUT:
  • Power Factor: 0.6
  • Voltage (AC Mode): 230VAC ±15%
  • Voltage Regulation (Batt Mode): ±10%
  • Frequency: 50/60Hz &plus mn;10%
  • Frequency Regulation (Batt Mode): &plus mn;1Hz
  • Output Waveform: Modified Sine Wave
  • UPS Outlets: 2 (Australian 3 pin - 10A)
• EFFICIENCY
  • Line Mode: 95%
  • AVR Mode: 88%
  • Battery Mode: 60%
• BATTERY:
  • Battery Type: 12V/7AH x 1pc
  • Recharge Time: 6 Hours to 90% after complete discharge
• TRANSFER TIME - Typical: <6ms
• INDICATOR - LCD Indicator with Blue Back Light: The LCD will turn on when the UPS is powered up, Displays IN/Out Voltage (AC), Load Level, Battery Capacity and Operational Mode
• AUDIBLE ALARM: Yes
• PROTECTION - Full Protection: Discharge, Overcharge and Overload protection
• Dimension (DxWxH): 290 x 100 x 143mm
• Nett Weight: 2.36 kg
• ENVIRONMENT:
  • Operating Environment: 0 ~ 40°C, 0 ~ 90% Relative Humidity (non-condensing)
  • Noise level:
• AC Mode Less than 40dB
• INTERFACE - USB: RJ11 - Phone/Modem
• SOFTWARE - Winpower via Internet download: Free BSD/Linux/Mac/Windows 95-2008/Vista/Unix
