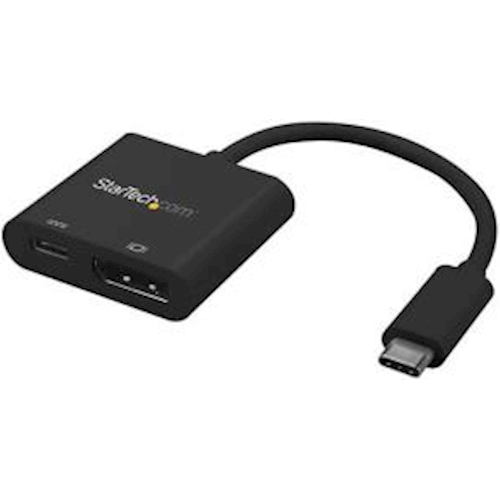

[CDP2DPUCP] StarTech USB C to DisplayPort Adapter with USB PD

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$47.34

(Inc. GST)

Availability:

Online Only

Est. Delivery:

Brand:

StarTech

Man. Part #:

CDP2DPUCP

Our Part #:

CDP2DPUCP

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About CDP2DPUCP Price Match CDP2DPUCP

StarTech.com USB C to DisplayPort Adapter with Power Delivery - 4K 60Hz HBR2 - USB Type-C to DP 1.2 Monitor Video Converter w/ Charging - 60W PD Pass-Through - Thunderbolt 3 Compatible, USB Type-C, DisplayPort output, 3840 x 2160 pixels

Description
Specifications

Use this USB Type-C to DisplayPort adapter to output DP video and charge your laptop using a single USB-C port

This USB-C to DisplayPortÂ adapter lets you connect your laptop or MacBook with USB Type-C to a DisplayPort monitor. The video adapter features USB Power Delivery, which enablesÂ you to power your laptop while you're outputting video to a DisplayPort display.

USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook, Chromebook Pixel and the 2018 iPad Pro. It's also compatible with Thunderbolt 3 ports.

Charges your laptop

Unlike some video adapters that take up one of your laptopâs USB-C ports toÂ outputÂ video, this video adapter features an additional USB-C charge port thatÂ supports USB Power Delivery up to 60 watts. This means you can charge your laptop andÂ outputÂ video using aÂ single port, by simply connecting the laptopâs power adapter to the adapter's USB-C port. Itâs the perfect solution for laptops that have a limited number of USB-C ports.

Promotes portability

This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. Itâs the perfect accessory to carry with your MacBook or other USB-C computer, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Connects easily

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device when you're trying to deliver a presentation or sharing information.

Maintains astonishing picture quality

At four times the resolution of high-definition 1080p, youâll be amazed at the picture quality of a 4K monitor or television. The adapter lets you harness the video capabilities that are built into your USB Type-C connection to deliver the astonishing quality of Ultra HD to your 4K display. 4K resolution gives you additional screen space to simplify your approach to detailed work such as editing video and viewing large spreadsheets.

Even if you're not running 4K, the adapter supports high-definition 1080p and lower resolutions, which gives you peace of mind in knowing that this adapter will work with any DP displayÂ you need to connect to.

The CDP2DPUCP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE: USB-C to DisplayPort 1.2 (DP Alt Mode HBR2) (21.6Gbps) adapter to connect a single DP display supporting 4K 60Hz UHD (4096x2160/3840x2160)
- HDCP 2.2/1.4
- Thunderbolt 3 Compatible

Performance

USB connector type

The type of USB connector/port that this product has.

USB Type-C

USB connector gender

Male

DVI output

HDMI output

The device features an HDMI output.

DisplayPort output

The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data.

Number of displays supported

The number of displays that can be used with this product.

DisplayPort version

1.2

Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width Ã height,: for example, "1024 Ã 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels

Refresh rate at maximum resolution

60 Hz

Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 768,1280 x 800,1360 x 768 (WXGA),1440 x 900 (WXGA+),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1280,2560 x 1600 (WQXGA),3840 x 2160

Audio output channels

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1 channels

Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

PERICOM - PI3DPX1203, VIA/VLI - VL100

Certification

FCC, CE, REACH

Design

Product colour

The colour e.g. red, blue, green, black, white.

Black

Housing material

What the casing of the product is made of.

Plastic

Integrated USB cable

USB cable length

0.1 m

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 70 Â°C

Operating relative humidity (H-H)

0 - 90%

Weight & dimensions

Width

The measurement or extent of something from side to side.

43 mm

Depth

The distance from the front to the back of something.

187 mm

Height

The measurement of the product from head to foot or from base to top.

12 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

22 g

Package width

The distance from one side of the packaging to the other.

145 mm

Package depth

The distance from the front to the back of the packaging.

170 mm

Package height

The distance from the top to the bottom of the packaging.

30 mm

Package weight

Weight of the packaged product.

90 g

Technical details

Sustainability certificates

RoHS

Logistics data

Products per master (outer) case

60 pc(s)

Master (outer) case width

33 cm

Master (outer) case length

52.5 cm

Master (outer) case height

31.5 cm
