Home » Cables & Adapters » Legacy & Specialised Cables » RS232 Serial Cables » StarTech ICUSB2321F

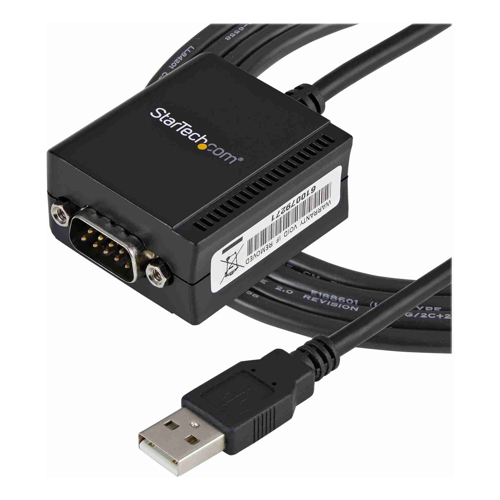

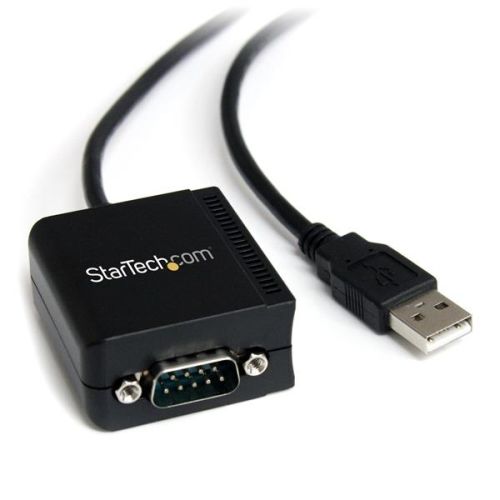

[ICUSB2321F] StarTech STARTECH.COM USB to RS232 DB9 SERIAL ADAPTER, M to M, 1.8M, COM RETENTION, FTDI, 2YR

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$63.24

(Inc. GST)

Availability:

Online Only

Est. Delivery:

1-3 days

Brand:

StarTech

Man. Part #:

ICUSB2321F

Our Part #:

ICUSB2321F

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About ICUSB2321F Price Match ICUSB2321F

StarTech.com 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, DB-9, USB 2.0 A, 0.2 m, Black

Description
Specifications

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including WindowsÂ®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- The FTDI chipset is highly customizable and compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
- Simple installation and operation with COM port retention provides robust serial connectivity for legacy devices

Ports & interfaces

Connector 1

This is the first connector in the device.

DB-9

Connector 2

This is the second connector in the device.

USB 2.0 A

Connector 1 gender

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Male

Connector 2 gender

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Male

Cable length

How long the cable is.

0.2 m

Performance

Product colour

The colour e.g. red, blue, green, black, white.

Black

Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

FTDI - FT232RL

Data bits

7,8

Stop bits

1,2

Baud rate

115.2 Kbit/s

Parity bit

Even, Mark, N, Odd, Space

FIFO (First In, First Out)

256 B

Certification

CE, FCC

Compatible operating systems

List of desktop operating systems tested as compatible with this product.

- Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 - Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 - Mac OS 10.6 to 10.14 - Linux 2.4.x to 4.11.x LTS

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 55 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 85 Â°C

Relative humidity

5 - 95%

Sustainability

Sustainability certificates

RoHS

Weight & dimensions

Width

The measurement or extent of something from side to side.

41.5 mm

Depth

The distance from the front to the back of something.

45 mm

Height

The measurement of the product from head to foot or from base to top.

22 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

90 g

Packaging data

Package width

The distance from one side of the packaging to the other.

145 mm

Package depth

The distance from the front to the back of the packaging.

175 mm

Package height

The distance from the top to the bottom of the packaging.

32 mm

Package weight

Weight of the packaged product.

176 g

Packaging content

Manual

Drivers included
