Home » Networking » Network Adapters » Wired Network Adapters » StarTech MCMGBSCMM055

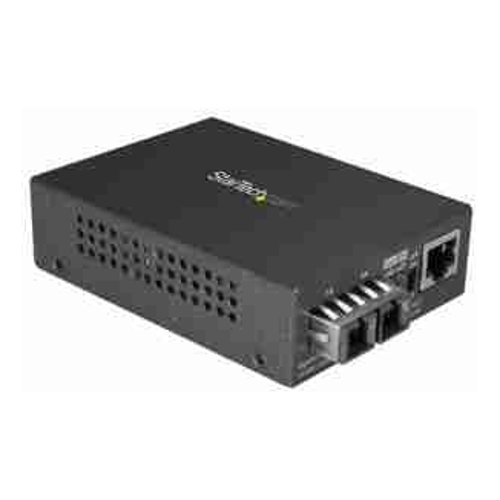

[MCMGBSCMM055] StarTech STARTECH.COM MULTIMODE SC FIBER ETHERNET MEDIA CONVERTER BRIDGE 10/100/1000 2 YR

StarTech STARTECH.COM MULTIMODE SC FIBER ETHERNET MEDIA CONVERTER BRIDGE 10/100/1000 2 YR Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$130.01
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
MCMGBSCMM055
Our Part #:
MCMGBSCMM055
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About MCMGBSCMM055 Price Match MCMGBSCMM055
StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex, 1000 Mbit/s, 100Base-TX,1000Base-T, 1000Base-SX, IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
1000 Mbit/s
Converter input interface
A convertor changes one form of signal into another e.g. A/D Converter changes a signal from analog to digital. A convertor input interface is the place where a convertor connects to the product in order to input the converted signal.
100Base-TX,1000Base-T
Converter output interface
1000Base-SX
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Jumbo frames support
Y
Jumbo frames
9000
Flow control support
Y
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Y
Store-and-forward
Y
Duplex system
A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.
Full
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Fiber ports quantity
The number of sockets (ports) for fibers (cables).
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
SC
Performance
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
550 m
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
850 nm
Wavelength-division multiplexing (WDM)
N
Fiber mode structure
Multi-mode
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Design
Internal
The product is built in.
N
LED indicators
Activity, Link, Power
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Certification
CE, FCC, REACH
Power
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
0.5 A
Output voltage
5 V
Output current
2.6 A
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
5 W
External power adapter
Y
Power plug type
Type N
Weight & dimensions
Width
The measurement or extent of something from side to side.
97 mm
Depth
The distance from the front to the back of something.
70 mm
Height
The measurement of the product from head to foot or from base to top.
26 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
200 g
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Packaging data
Package width
The distance from one side of the packaging to the other.
280 mm
Package depth
The distance from the front to the back of the packaging.
133 mm
Package height
The distance from the top to the bottom of the packaging.
66 mm
Package weight
Weight of the packaged product.
564 g
Packaging content
AC adapter included
Y
Quick installation guide
Y
Technical details
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
59.5 cm
Master (outer) case length
37.5 cm
Master (outer) case height
32 cm
Products per master (outer) case
20 pc(s)
