Home » Cables & Adapters » Data / USB Cables » SATA Cables » StarTech SAT32M225

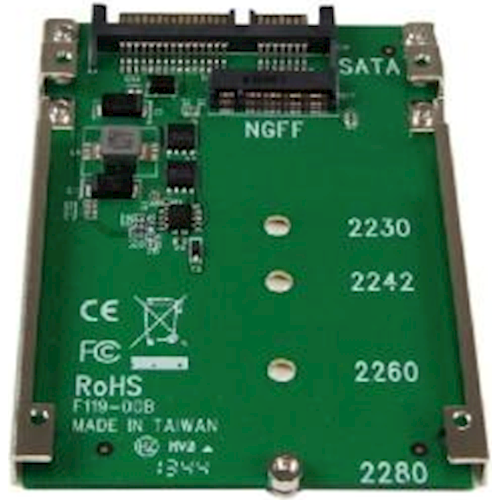

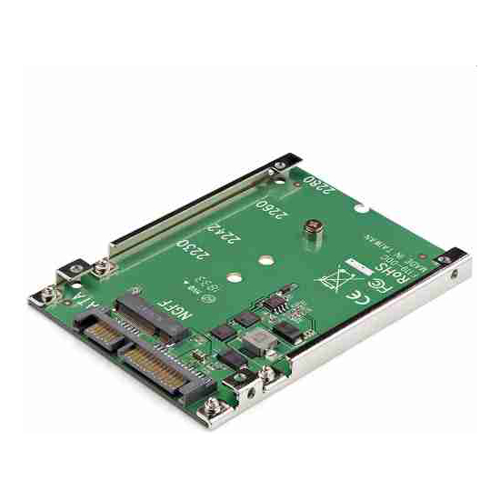

[SAT32M225] StarTech STARTECH.COM M.2 SSD to 2.5" SATA ADAPTER CONVERTER, 7MM OR LARGER 2.5" SATA BAY, 2YR

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$35.58

(Inc. GST)

Availability:

Online Only

Est. Delivery:

1-3 days

Brand:

StarTech

Man. Part #:

SAT32M225

Our Part #:

SAT32M225

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About SAT32M225 Price Match SAT32M225

StarTech.com M.2 SATA SSD to 2.5in SATA Adapter - M.2 NGFF to SATA Converter - 7mm - Open-Frame Bracket - M2 Hard Drive Adapter, SATA, M.2, Green, CE, FCC, 6 Gbit/s, -40 - 85 °C

Description
Specifications

M.2 SATA NGFF to 2.5 in. SATA | 7mm High | SATA 6Gbps | Open FrameVastly increase the performance of your system by adding the speed of an M.2 SATA SSD in any 2.5" SATA application, with this M.2 SATA SSD to 2.5in SATA adapter.Boost System PerformanceUtilize the full potential of your SATA III controller, with an M.2 SATA SSD, reducing your data transfer bottleneck with file transfer speeds up to 6Gbps. This M.2 SATA NGFF to SATA adapter can also save you money by reducing your power consumption over regular platter drives.Hassle-Free SetupThis M.2 SATA to 2.5 in. SATA adapter offers a fast an easy setup with no drivers to install. The mounting hardware is also included with the M.2 SATA SSD to SATA adapter for a quick installation.Open-Frame DesignThe M.2 SATA SSD to 2.5 in. SATA converter helps protect the health of your drive with an open-frame design that maximizes heat dissipation.SAT32M225 is backed by a StarTech.com 2-year warranty, and lifetime technical support.The StarTech.com Advantage

Ports & interfaces

Host interface

Interface that enables a host controller to communicate with a driver.

SATA

Output interface

The socket (port) where the output connectors are connected.

M.2

SATA revision

3.0

Design

Internal

The product is built in.

Product colour

The colour e.g. red, blue, green, black, white.

Green

Hot-swap

Certification

CE, FCC

Features

Data transfer rate (max)

6 Gbit/s

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

-40 - 85 Â°C

System requirements

Windows operating systems supported

Windows vesions wich can be used with the device.

Mac operating systems supported

Mac operating systems e.g. OS X can be used with the device.

Linux operating systems supported

8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

The measurement or extent of something from side to side.

70 mm

Depth

The distance from the front to the back of something.

100 mm

Height

The measurement of the product from head to foot or from base to top.

7 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

36 g

Packaging data

Screws included

Manual

Package width

The distance from one side of the packaging to the other.

175 mm

Package depth

The distance from the front to the back of the packaging.

145 mm

Package height

The distance from the top to the bottom of the packaging.

32 mm

Package weight

Weight of the packaged product.

102 g

Logistics data

Products per master (outer) case

60 pc(s)

Master (outer) case width

38.3 cm

Master (outer) case length

49.9 cm

Master (outer) case height

31.5 cm
