Home » Cables & Adapters » Data / USB Cables » SATA Cables » StarTech IDE2SAT2

[IDE2SAT2] StarTech STARTECH.COM IDE to 40-PIN SATA to 2.5", 3.5" & 5.25" SATA DRIVE ADAPTER, 2YR

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$31.27

(Inc. GST)

Availability:

Online Only

Est. Delivery:

1-3 days

Brand:

StarTech

Man. Part #:

IDE2SAT2

Our Part #:

IDE2SAT2

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About IDE2SAT2 Price Match IDE2SAT2

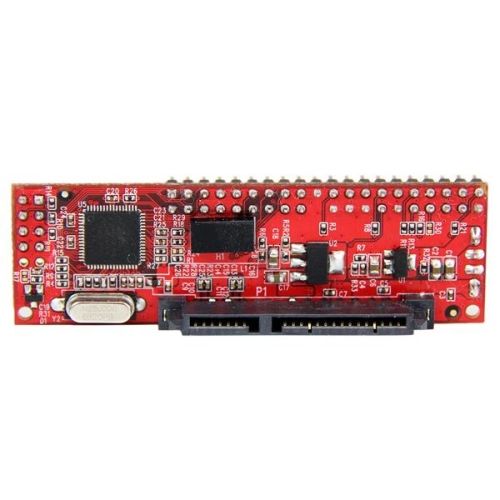

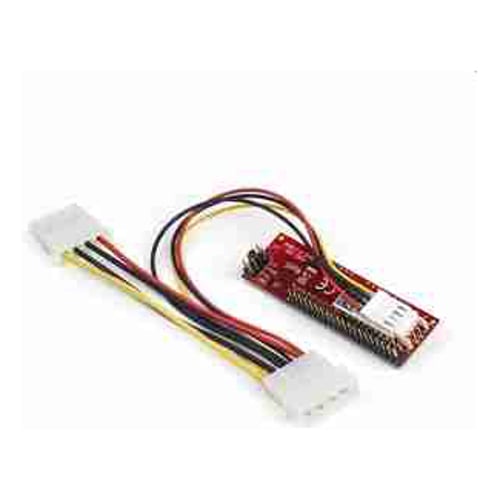

StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter, IDE, SATA, 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin), Red, FCC, CE, TAA, REACH, Marvell - 88SA8052

Description
Specifications

Connect your SATA Hard Drive or Blu-ray/DVD/CD-ROM Drive to an IDE motherboard

The IDE2SAT2Â 40-pin IDE toÂ SATA adapter enables you to connect a SATA I/II/III drive to an availableÂ IDE/ATA 33/66/100/133 motherboard port -Â a cost effective solution that allows you to add newer SATA drives, andÂ keepÂ yourÂ existing motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, orÂ CD-ROM drives to an older IDE motherboard.

TheÂ IDE/SATA adapter is backed by a StarTech.comÂ 2-year Warranty and free lifetime technical support.

The StarTech.com Advantage

- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle-free installation, with no software CD required
- Backed by a StarTech.com 2 year warranty and free lifetime technical support

Ports & interfaces

Host interface

Interface that enables a host controller to communicate with a driver.

IDE

Output interface

The socket (port) where the output connectors are connected.

SATA

Connector(s)

1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin)

Design

Internal

The product is built in.

Product colour

The colour e.g. red, blue, green, black, white.

Red

Certification

FCC, CE, TAA, REACH

Features

Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

Marvell - 88SA8052

Data transfer rate (max)

0.133 Gbit/s

Logical block addressing (LBA) support

48 bit

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 50 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-25 - 80 Â°C

Operating relative humidity (H-H)

15 - 90%

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

The measurement or extent of something from side to side.

20 mm

Depth

The distance from the front to the back of something.

75.5 mm

Height

The measurement of the product from head to foot or from base to top.

23 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

29 g

Packaging data

Manual

Package width

The distance from one side of the packaging to the other.

175 mm

Package depth

The distance from the front to the back of the packaging.

145 mm

Package height

The distance from the top to the bottom of the packaging.

33 mm

Package weight

Weight of the packaged product.

89 g

Other features

Material

The material from which a thing is or can be made e.g. wood, plastic.

Plastic, Steel
