[S322M225R] StarTech STARTECH.COM DUAL-SLOT M.2 to SATA ADAPTER - M.2 ADAPTER - RAID 2YR

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$75.04

(Inc. GST)

Availability:

Online Only

Est. Delivery:

1-3 days

Brand:

StarTech

Man. Part #:

S322M225R

Our Part #:

S322M225R

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About S322M225R Price Match S322M225R

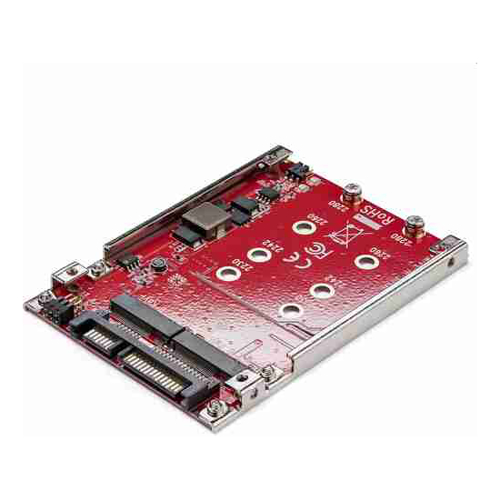

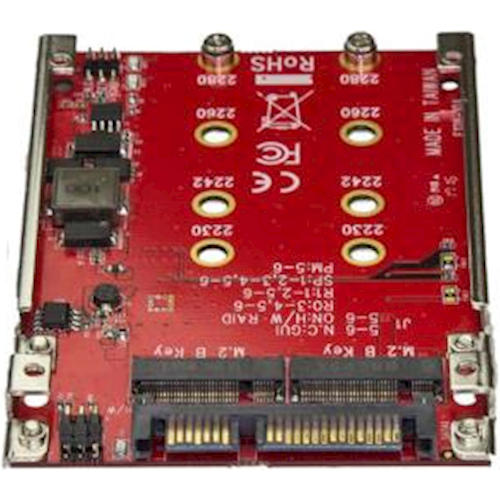

StarTech.com Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID, SATA, M.2, Red, CE, FCC, REACH, TAA, ASMedia - ASM1092R, 6 Gbit/s

Description
Specifications

Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5â SATA interface

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5â drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maximize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesnât require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Install two M.2 SSD drives into a single 2.5â drive bay
- Multiple RAID modes supported: RAID 0, 1, spanning, or JBOD
- Open-frame steel mounting bracket with 2.5â SATA form factor housing

Ports & interfaces

Host interface

Interface that enables a host controller to communicate with a driver.

SATA

Output interface

The socket (port) where the output connectors are connected.

M.2

SATA revision

3.0

Number of M.2 (B) slots

Number of SSDs supported

Port multiplier

Design

Internal

The product is built in.

Product colour

The colour e.g. red, blue, green, black, white.

Red

Hot-swap

Easy to install

Certification

CE, FCC, REACH, TAA

Features

Chipset

Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.

ASMedia - ASM1092R

Data transfer rate (max)

6 Gbit/s

S.M.A.R.T. support

TRIM support

RAID levels

RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.

0,1,BIG,JBOD

Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

5 - 50 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-25 - 70 Â°C

Operating relative humidity (H-H)

15 - 90%

Technical details

Sustainability certificates

RoHS

Weight & dimensions

Width

The measurement or extent of something from side to side.

70 mm

Depth

The distance from the front to the back of something.

100 mm

Height

The measurement of the product from head to foot or from base to top.

7 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

41 g

Packaging data

Mounting brackets included

Screws included

Quick installation guide

Package width

The distance from one side of the packaging to the other.

172 mm

Package depth

The distance from the front to the back of the packaging.

142 mm

Package height

The distance from the top to the bottom of the packaging.

30 mm

Package weight

Weight of the packaged product.

110 g
