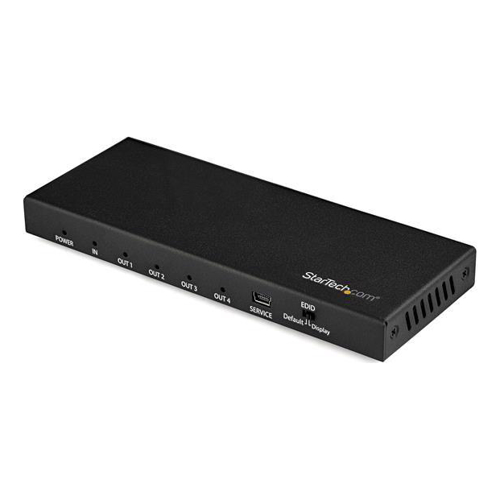

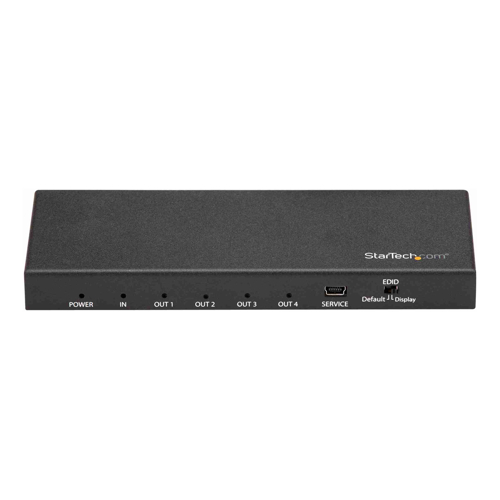

[ST124HD202] StarTech STARTECH.COM 4 Port HDMI SPLITTER - 4K 60HZ - 1X4 WAY HDMI 2.0 SPLITTER 2YR

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$127.46

(Inc. GST)

Availability:

Online Only

Est. Delivery:

1-3 days

Brand:

StarTech

Man. Part #:

ST124HD202

Our Part #:

ST124HD202

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About ST124HD202 Price Match ST124HD202

StarTech.com 4-Port HDMI Splitter - 60Hz, HDMI, 4x HDMI, 3840 x 2160 pixels, Black, 4K Ultra HD, 60 Hz

Description
Specifications

1 In 4 Out Video Splitter | HDMI 2.0 | HDR | 2-Year Warranty

This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.

True 4K at 60Hz and HDR

With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.

The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.

Widely Compatible

The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.

Easy Installation

For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.

ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- Astonishing picture quality with support for 4K 60Hz and HDR
- Wide device compatibility with support for HDCP 2.2, backward compatible with virtually any HDMI device
- Hassle-free setup with support for EDID emulation and plug-and-play installation

HDMI Input

Take advantage of the most commonly used media output interface in modern laptops and desktops with a direct HDMI input on the monitor. No adapters needed.

Ports & interfaces

Video port type

The type of socket in the device for connecting a video e.g. SCART.

HDMI

Video out

4x HDMI

HDMI version

2.0

Video ports quantity

The number of ports (sockets) for video input or output.

Features

Product colour

The colour e.g. red, blue, green, black, white.

Black

Maximum resolution

The maximum number of pixels that can be displayed in the image. It is usually quoted as width Ã height,: for example, "1024 Ã 768" means the width is 1024 pixels and the height is 768 pixels.

3840 x 2160 pixels

Full HD

Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection.

HD type

Type of supported High Definition (e.g. Full HD, 4K Ultra HD).

4K Ultra HD

Maximum refresh rate

60 Hz

HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

Supported graphics resolutions

The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.

1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160

Power LED

Plug and Play

Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Supported video modes

The video modes that can be displayed by the device.

720p,1080p

LED indicators

Certification

CE, FCC, REACH

Power

AC input voltage

The voltage of the AC electricity that is inputted into the product.

100 - 240 V

Input current

1 A

Output voltage

5 V

Output current

0.2 A

Power consumption (typical)

Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.

5 W

Weight & dimensions

Width

The measurement or extent of something from side to side.

64 mm

Depth

The distance from the front to the back of something.

165 mm

Height

The measurement of the product from head to foot or from base to top.

65 mm

Weight

Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.

506 g

Packaging data

Package width

The distance from one side of the packaging to the other.

148 mm

Package depth

The distance from the front to the back of the packaging.

212 mm

Package height

The distance from the top to the bottom of the packaging.

55 mm

Packaging content

User guide

Included power plug types

AU,EU,NA,UK

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-20 - 60 Â°C

Operating relative humidity (H-H)

20 - 90%

Technical details

Maximum cable length

5 m

Supported audio channels

7.1

Sustainability certificates

RoHS
