Home » Cables & Adapters » Legacy & Specialised Cables » Other Specialised Cables » StarTech ICUSB234858I

[ICUSB234858I] StarTech Serial Adapter USB RS-232/422/485 8-Port

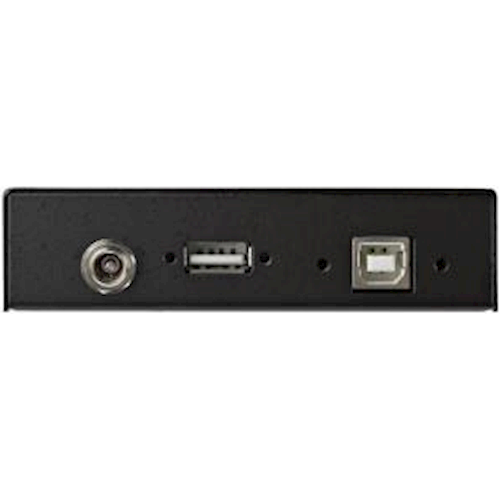

StarTech Serial Adapter USB RS-232/422/485 8-Port Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$779.54
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
ICUSB234858I
Our Part #:
ICUSB234858I
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About ICUSB234858I Price Match ICUSB234858I
StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection, USB 2.0, Serial, Black, Steel, Power, CE, FCC, TAA, RoHS, REACH

Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection

Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.

The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- RUGGED & RELIABLE: This industrial metal USB to serial adapter hub adds 8 RS-232/422/485 ports & 1 USB 2.0 port w/ 15kV ESD surge protection (level 4), IP30 rating & locking connectors on all ports
- 8 SERIAL PORTS: The ports on this USB to serial converter can be individually configured to RS232, RS422 or RS485 (2wire/4wire) at baud rates up to 921.6Kbps for devices like barcode scanners/printers
- MOUNTING OPTIONS: This metal mountable 8-port serial hub w/ 6ft (1.8 m) screw-lock USB cable incl. installs securely to a desk, wall or DIN rail using the built-in mounting ears & incl. DIN brackets
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
USB 2.0
Hub interfaces
A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports.
Serial
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Ports quantity
The number of ports or external interfaces to which other equipment can be connected.
8
RS-232 ports
The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports.
8
Features
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Steel
Surge protection
Y
LED indicators
Power
Certification
CE, FCC, TAA, RoHS, REACH
Power
Power source type
What the power source is.
AC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
36 W
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power plug type
Type M
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Y
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Weight & dimensions
Width
The measurement or extent of something from side to side.
128 mm
Depth
The distance from the front to the back of something.
219 mm
Height
The measurement of the product from head to foot or from base to top.
25 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
688 g
Packaging data
Package width
The distance from one side of the packaging to the other.
190 mm
Package depth
The distance from the front to the back of the packaging.
290 mm
Package height
The distance from the top to the bottom of the packaging.
67 mm
Package weight
Weight of the packaged product.
1.6 kg
Packaging content
AC adapter included
Y
Included power plug types
ANZ,EU,UK,US
Cables included
USB
DIN rail kit included
Y
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 55 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Performance
Data bits
7,8
Stop bits
1,2
Parity bit
Even, Mark, N, Odd, Space
Baud rate
921.6 Kbit/s
Logistics data
Master (outer) case width
41 cm
Master (outer) case length
42 cm
Master (outer) case height
27.5 cm
Products per master (outer) case
14 pc(s)
Other features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
FTDI - FT4232H, Genesys Logic - GL825
