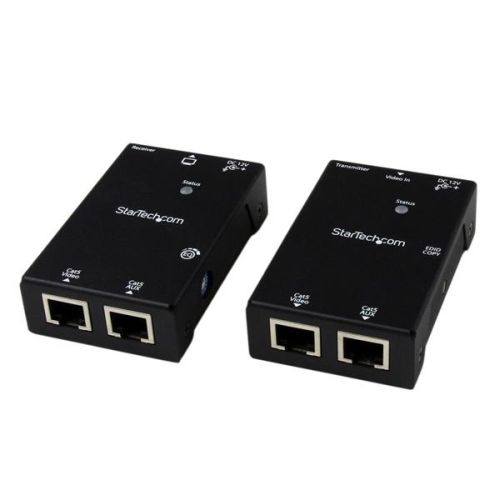

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.
For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.
The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
|Manufacturer Part Number||ST121SHD50|
|Manufacturer Website Address||http://www.startech.com/au|
|Product Name||HDMI Over CAT5/CAT6 Extender with Power Over Cable - 165 ft (50m)|
|Product Type||Video Extender Transmitter/Receiver|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||1|
|Maximum Operating Distance||50 m|
|Graphics Modes||Full HD|
|Maximum Video Resolution||1920 x 1080|
|Number of Network (RJ-45) Ports||4|
|Number of HDMI Inputs||1|
|Number of HDMI Outputs||1|
|Media & Performance|
|Media Type Supported||Twisted Pair|
|Twisted Pair Cable Standard||Category 6|
|Transmitter Height||20.32 mm|
|Transmitter Width||50.80 mm|
|Transmitter Depth||78.74 mm|
|Receiver Height||20.32 mm|
|Receiver Width||50.80 mm|
|Receiver Depth||78.74 mm|
|Transmitter Weight (Approximate)||314 g|
|Receiver Weight (Approximate)||314 g|
