[PEX1S953LP] StarTech Card - 1 Port RS232 Serial Adapter PCIe

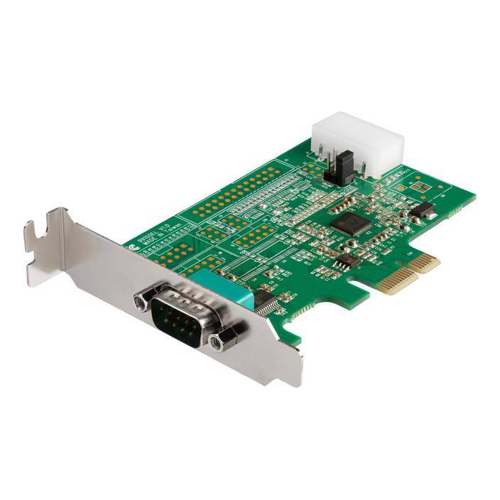

StarTech Card 1 Port RS232 Serial Adapter PCIe Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$84.85
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
PEX1S953LP
Our Part #:
PEX1S953LP
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About PEX1S953LP Price Match PEX1S953LP
StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux, PCIe, Serial, PCIe 1.1, RS-232, Green, 277385 h

PCI Express to Serial Adapter | 921.4Kbps | Windows and Linux Compatible

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.

Maximum Compatibility

With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

Experience Optimal Technology

This PCIe to serial adapter supports the following features:

Compatible with industry standard 16950 UART

Supports max baud rate of up-to 921.4Kbps

Provides 5/12V power output on Pin 9 when external power is connected

128-byte depth FIFO per transmitter and receiver

Supports 9, 8, 7, 6, 5 data bits

Asix AX99100 chipset

PCI Express 1.1 compliant

PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total
- STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
Ports & interfaces
Host interface
Interface that enables a host controller to communicate with a driver.
PCIe
Output interface
The socket (port) where the output connectors are connected.
Serial
Expansion card standard
PCIe 1.1
Serial ports quantity
The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.
1
Serial interface type
RS-232
Peripheral (Molex) power connectors (4-pin)
White 4-pinned connector used to connect a peripheral to the power supply.
1
Design
Internal
The product is built in.
Y
Product colour
The colour e.g. red, blue, green, black, white.
Green
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
277385 h
Certification
CE, FCC, Microsoft WHQL
Features
Chipset
Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance.
Asix AX99100
Baud rate
921.4 Kbit/s
FIFO (First In, First Out)
256 B
Data bits
5,6,7,8,9
Stop bits
1,1.5,2
Flow control support
Y
Parity bit
Even, Mark, N, Odd, Space
Flow Control type
N, RTS/CTS, XON/XOFF
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 80 °C
Operating relative humidity (H-H)
20 - 80%
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Y
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Technical details
Sustainability certificates
RoHS
Weight & dimensions
Width
The measurement or extent of something from side to side.
67 mm
Depth
The distance from the front to the back of something.
98 mm
Height
The measurement of the product from head to foot or from base to top.
150 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
44 g
Packaging data
Quantity
The number of products there are.
1
Mounting brackets included
Y
Manual
Y
Package width
The distance from one side of the packaging to the other.
142 mm
Package depth
The distance from the front to the back of the packaging.
170 mm
Package height
The distance from the top to the bottom of the packaging.
30 mm
Package weight
Weight of the packaged product.
112 g
Logistics data
Products per master (outer) case
75 pc(s)
Master (outer) case width
36 cm
Master (outer) case length
68.5 cm
Master (outer) case height
31.5 cm
