Part Number: HD-EX-70-HDBT
Overview

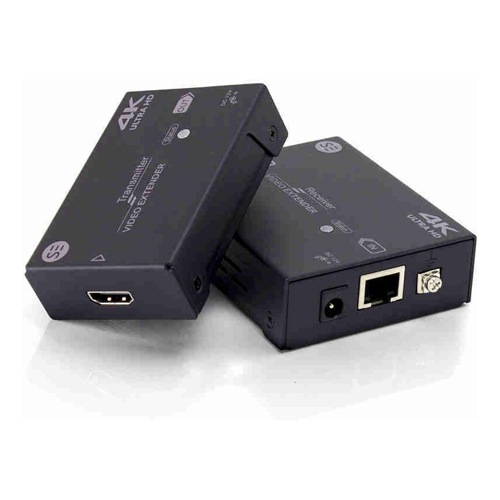

The Serveredge HD-EX-70-HDBT is a 4K2K HDMI over HDBaseT extender kit (Tx/Rx) for HDMI transmission up to 70 meters (UHD resolution up to 35m) over a single CAT5e/CAT6/CAT6A cable. The kit is HDCP compliant and supports HDMI up to 10.2Gps, including support for 1080p 60, Deep Colour, HD-3D, 4Kx2K video, HD Audio Formats and Audio Return Channel. It only needs power supply at either Transmitter or Receiver end.
It's an advanced and inexpensive all-in-one connectivity solution to minimise-cost with use of only a single CAT cable between Transmitter and Receiver. its perfect for applications like hospitality (hotels, conference rooms), digital signage (airports, shopping malls), surveillance cameras, whole-home networking, and point-to-point consumer applications.
Features
Supports Ultra High Definition sources and displays. Future proofs AV systems in preparation for technology improvements, 4K/UHD streaming services and playback devices
Adheres to latest specification for High-bandwidth Content Protection. Allows protected content stream to pass between devices
Only requires single power supply at either transmitter or receiver end. Saves time and integration costs
Transmits HDMI signals up to 70m @ 1080P over CAT5e/6/6A or 4K/UHD up to 35m. Uses easy-to-integrate category cable for low-cost, reliable system installation
Take advantage of the most commonly used media output interface in modern laptops and desktops with a direct HDMI input on the monitor. No adapters needed.
| Part Number | HD-EX-70-HDBT | |
| Input → Output |
1 x HDMI → 1 x RJ-45 (Transmitter unit) 1 x RJ-45 → 1 x HDMI (Receiver unit) |
|
| LED (Link / Video status) |
1 x Dual Colour (Transmitter unit) 1 x Dual Colour (Receiver unit) |
|
| Video Resolution (max.) | UHD (3840 x 2160 @ 30 Hz) | |
| Extension Distance (max.) |
70 m (FHD 1920 x 1080) 35 m (UHD 3840 x 2160) |
|
| Power Supply |
DC 12V (Single power supply at either one end of two units) |
|
| Enclosure | Metal | |
| Weight |
120 g (Transmitter unit) 195 g (Receiver unit) |
|
| Dimensions (H x W x D) |
22 x 52 x 80 mm (Transmitter unit) 25 x 67 x 80 mm (Receiver unit) |
|
