Home » Networking » Network Switches » Gigabit Network Switches » NETGEAR XSM4324CS-100AJS

[XSM4324CS-100AJS] NETGEAR ProSAFE M4300-24X Stackable L3 Managed Switch -24-Port 10GBASE-T, 4-Port shared 10GBASE-X SFP+ and 480Gbps fabric in a half-width f

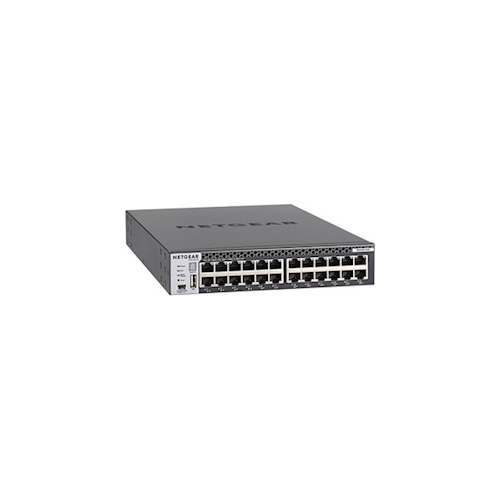

NETGEAR ProSAFE M4300-24X Stackable L3 Managed Switch -24-Port 10GBASE-T 4-Port shared 10GBASE-X SFP+ and 480Gbps fabric in a half-width f Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$11,048.18
(Inc. GST)
Availability:

Est. Delivery:
4+ Weeks
Brand:
Man. Part #:
XSM4324CS-100AJS
Our Part #:
XSM4324CS-100AJS
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About XSM4324CS-100AJS Price Match XSM4324CS-100AJS
Netgear M4300-24X, Managed, L3, 10G Ethernet (100/1000/10000), Rack mounting

NETGEAR ProSAFE M4300-24X Stackable L3 Managed Switch comes with 24-port 10GBASE-T, 4-port shared 10GBASE-X SFP+ and 480Gbps fabric in a half-width form factor. All 24 ports are 1G backward compatible for progressive transition to 10G speeds. M4300-24X is line-rate with 480Gbps fabric for spine and leaf stacking architectures. M4300 Switch Series delivers L2/L3/L4 and IPv4/IPv6 rich services for mid-enterprise edge and SMB core with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover, that is, distributed link aggregation allows for load balancing and virtually zero downtime. M4300 is ideal for server aggregation with Auto-iSCSI prioritization: two half-width M4300 switches can be installed in a single rack space for redundant Top of Rack installations. Layer 3 feature set includes static and policy-based routing, RIP, VRRP, OSPF, and PIM dynamic routing – as standard. The NETGEAR M4300 Switch Series is also ready for the future, with Software-defined Network (SDN) and OpenFlow 1.3 enabled for your network.

Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L3
Quality of Service (QoS) support
Y
ARP inspection
Y
System event log
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
24
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
4
Console port
RJ-45
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
2
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1AX,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3aq,IEEE 802.3u,IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Y
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Y
Spanning tree protocol
Y
Auto-negotiation
Y
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Y
Virtual LAN features
Private VLAN,Voice VLAN,Tagged VLAN
Number of VLANs
4000
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
480 Gbit/s
Forwarding rate
357 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 entries
Store-and-forward
Y
Latency (1 Gbps)
1.827 µs
Latency (10 Gbps)
2.728 µs
Jumbo frames support
Y
Jumbo frames
9216
Packet buffer memory
32 MB
Security
DHCP features
DHCP server,DHCP relay,DHCP client
Multicast features
Multicast support
Y
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Y
Stackable
Devices can be placed on top of each other.
Y
Product colour
The colour e.g. red, blue, green, black, white.
Black
Housing material
What the casing of the product is made of.
Metal
Reset button
Y
Certification
VCCI Class A
Performance
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
1024 MB
Flash memory
256 MB
Noise level
The amplitude level of the undesired background noise, usually measured in decibels (db).
37 dB
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
247437 h
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
The maximum amount of power used by the device.
125 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
212 mm
Depth
The distance from the front to the back of something.
345 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
4.14 kg
