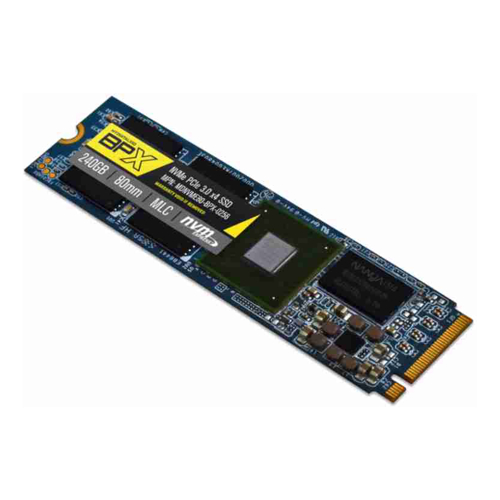

MyDigitalSSD Bullet Proof eXpress (BPX) 80mm (2280) M.2 PCIe 3.0 x4 NVMe SSDs are changing the conversation from MB/s to GB/s - unleashing sequential read/write speeds over 4X faster than SATA SSDs at a blistering 2.6GB (2,600MB/s) and 1.3GB/s (1,300MB/s) respectively. BPX drives empower gamers, enthusiasts, and professionals by opening a new realm of possibilities in the world of high-end computing while also an ideal solution for read-intensive enterprise servers and data center applications. Get the most out of your notebook / Ultrabook / NUC mini PC / All-In-One / desktop workstation; experience GB/s performance today with BPX.
NVMe (Non-Volatile Media Express) is an SSD storage interface that sheds the burden of legacy AHCI commands for uncompromised performance that saves power even throughout data-intensive workloads over a 5-year period.
With a lower latency than that of today's traditional hard disk drives and SATA SSDs, BPX drives create a more responsive computing experience.
MyDigitalSSD BPX drives use a four-lane PCI Express 3.0 (PCIe) interface to maximize your computing experience; delivering exceptional throughput performance and latency in this client solid state drive.
Built with scalability in mind, BPX drives are backwards compatible with PCIe 2.0 and 1.1; limited only by their respective bandwidths.
The PHISON E7 (PS5007-E7) controller is built to safeguard mission-critical data with end-to-end data path protection and a SmartECC engine to ensure data integrity during high-speed transfers. It also utilizes firmware algorithms such as SmartFlush and an optional P-fail circuitry to prevent in-flight data loss from sudden power interruptions, as well as advanced security features driven with a 256bit AES engine.
Additionally, the E7 controller supports NVMe L1 sub-state with less than 5mW in L1.2 low power mode, a key requirement for next-generation notebooks.
MyDigitalSSD BPX drives can be used as a boot device in a variety of systems with a free PCIe 2.0/3.0 M.2 socket, including Z97 / X99 / Z170 based motherboards, modern notebooks, and small form factor PC's like the Intel NUC.
They can also serve as added ultra-high-speed storage in virtually any desktop with a spare PCIe slot combined with a PCIe adapter.
| SKU | MDNVME80-BPX-0256 |
| Capacity | 240GB |
| Form Factor | M.2 2280 (80mm) |
| Interface | PCIe 3.0 x4 |
| Protocol | NVMe 1.2 |
| Flash | 2D MLC w/ 4-plane high-performance NAND |
| Controller | Phison E7 (PS5007-E7) |
| Encryption | AES 256-bit |
| Max Sequential Read | 2.6GB/s / 2,600MB/s |
| Max Sequential Write | 1.3GB/s / 1,300MB/s |
| 4K Random Read | 35MB/s (CDM) |
| 4K Random Write | 150MB/s (CDM) |
| Dimensions | 80mm x 22mm x 3mm |
| Weight | 8g |
| Operation Temperature | 0 to 70°C |
| Storage Temperature | -40 to 85°C |
| Shock | 1500G/0.5ms |
| Vibration | 80Hz~2000Hz/20G |
| Operating Voltage | 3.3V |
| Power Consumption | < 7 W |
| DEVSLP Mode | L1.2 power state supported |
| Error Correction Code | Supports ECC with 120bits/2KB BCH |
| Endurance | Up to 1,400 TBW |
| MTBF | >2,000,000 hours |
| RAID Support | Yes |
| TRIM Support | Yes |
| SMART Support | Yes |
| Static & Dynamic Wear Leveling | Yes |
| Bad Block Management | Yes |
| ETE Data Path Protection | Yes |
| Low Power Management | Yes (HIPM/DIPM mode) |
| Garbage Collection | Automatic |
| Device Sleep Mode Support | Yes |
| Software | None |
| Compliance | RoHS, FCC, CE, BSMI |
| Warranty | 5-year limited warranty up to 1,400 TBW |
