Home » Cables & Adapters » Video Cables » Video Adapters » ST121HDBT20L

[ST121HDBT20L] HDMI Over Cat6 Extender - up to 70 m

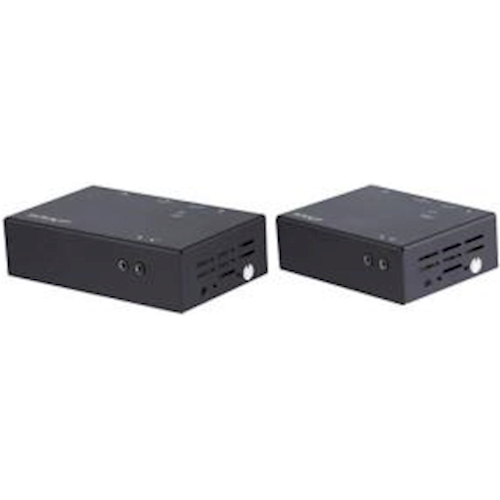

HDMI Over Cat6 Extender up to 70 m Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$816.56
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
ST121HDBT20L
Our Part #:
ST121HDBT20L
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About ST121HDBT20L Price Match ST121HDBT20L
StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 100 m (328 ft.), 4096 x 2160 pixels, AV transmitter & receiver, 100.1 m, Wired, Black

Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 70 m (230 ft.) and 1080p 60Hz at 100 m (328 ft.)This HDMI Over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 100 m (328 ft.) away.Get 4K at 60Hz from 70 m (230 ft.) awayThis HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 70 m (230 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 100 m (328 ft.) from your HDMI source.With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.Simplify your setupThe HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you extend an HDMI signal using existing infrastructure that’s already in your building. Plus, this HDMI extender supports Power Over Cable (POC), which means you’ll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.The ST121HDBT20L is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.The StarTech.com Advantage
Monitor HDMI Input

HDMI Input

Take advantage of the most commonly used media output interface in modern laptops and desktops with a direct HDMI input on the monitor. No adapters needed.

Features
Type
Characteristics of the device.
AV transmitter & receiver
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
4096 x 2160 pixels
Cable types supported
Cat5e,Cat6
Maximum transfer distance
The greatest distance over which the data/signal can be transferred.
100.1 m
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
LED indicators
Status
Supported video modes
The video modes that can be displayed by the device.
720p,1080p
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160
Material
The material from which a thing is or can be made e.g. wood, plastic.
Aluminium
Daisy chain
N
Rubber feet
Y
Product colour
The colour e.g. red, blue, green, black, white.
Black
Certification
CE, FCC, TAA, REACH
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
RJ-45 input ports
1
RJ-45 output ports
1
HDMI in
Port (socket) for HDMI input.
1
Number of HDMI outputs
Port (socket) for HDMI output.
1
Remote (IR) input
2
Remote (IR) output
2
Power
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Operating voltage
Defines the range of operating voltages available
18 V
Input current
0.6 A
Output current
1 A
External power adapter
Y
Power plug type
Type M
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Packaging data
Package width
The distance from one side of the packaging to the other.
206 mm
Package depth
The distance from the front to the back of the packaging.
280 mm
Package height
The distance from the top to the bottom of the packaging.
62 mm
Package weight
Weight of the packaged product.
230 g
Packaging content
AC adapter included
Y
Included power plug types
ANZ, EU, JP, NA, UK
Quick start guide
Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Y
IR blaster included
Y
IR receiver included
Y
Mounting brackets included
Y
Technical details
Sustainability certificates
RoHS
Logistics data
Master (outer) case width
32.3 cm
Master (outer) case length
41 cm
Master (outer) case height
27.5 cm
Products per master (outer) case
6 pc(s)
