Home » Networking » Networking Accessories » Other Accessories » Cisco C9300-48UXM-A

[C9300-48UXM-A] Cisco Catalyst 9300 48-Port (12 mGig 36 2.5Gbps) Network Advantage

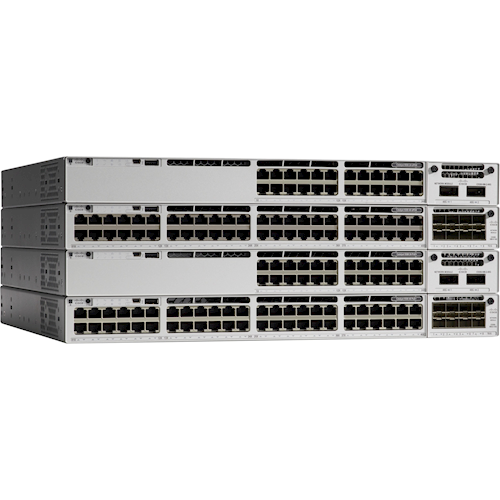

Cisco Catalyst 9300 48-Port (12 mGig 36 2.5Gbps) Network Advantage Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$17,505.85
(Inc. GST)
Availability:

Est. Delivery:
4+ Weeks
Brand:
Man. Part #:
C9300-48UXM-A
Our Part #:
C9300-48UXM-A
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About C9300-48UXM-A Price Match C9300-48UXM-A
Cisco Catalyst C9300-48UXM-A, Managed, L2/L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2/L3
Quality of Service (QoS) support
Y
ARP inspection
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
48
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
10G Ethernet (100/1000/10000)
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
Y
Cable types supported
Cat5e,Cat6,Cat6a
Zero Touch Provisioning (ZTP)
Y
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Flow control support
Y
Broadcast storm control
Y
Spanning tree protocol
Y
Multiprotocol Label Switching (MPLS)
Y
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Y
Virtual LAN features
Private VLAN
Number of VLANs
4094
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
580 Gbit/s
Forwarding rate
431.54 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
32000 entries
Jumbo frames support
Y
Jumbo frames
9198
Packet buffer memory
32 MB
Security
DHCP features
DHCP snooping
Access Control List (ACL)
Y
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
128-bit AES,256-bit AES
Multicast features
Multicast support
Y
IPv4 multicast entries
32000
IPv6 multicast entries
16000
Protocols
Virtual Router Redundancy Protocol (VRRP)
Y
Routing protocols
BGP,EIGRP,HSRP,IS-IS,OSPF,RIP
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Y
Stackable
Devices can be placed on top of each other.
Y
Form factor
The shape or design of the product.
1U
Product colour
The colour e.g. red, blue, green, black, white.
Grey
LED indicators
Y
Safety
List of regulatory safety standards for all countries in which this product has been certified.
UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3
Electromagnetic compatibility
List of countries and their respective regulatory agency standards with which the product complies.
47 CFR Part 15, CISPR22 Class A, EN 300 386 V1.6.1, EN 55022 Class A, EN 55032 Class A, CISPR 32 Class A, EN61000-3-2, EN61000-3-3, ICES-003 Class A, TCVN 7189 Class A, V-3 Class A, CISPR24, EN 300 386, EN55024, TCVN 7317
Performance
Built-in processor
Whether or not a processor is built into the device.
Y
Flash memory
16000 MB
Firmware upgradeable
Y
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Y
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
202160 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Total Power over Ethernet (PoE) budget
490 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-5 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating altitude
0 - 3000 m
Weight & dimensions
Width
The measurement or extent of something from side to side.
445 mm
Depth
The distance from the front to the back of something.
485 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
9.34 kg
