[MX-EX2010PXA-N] Cambium cnMatrix EX2010-P - 8 1G and 2 SFP

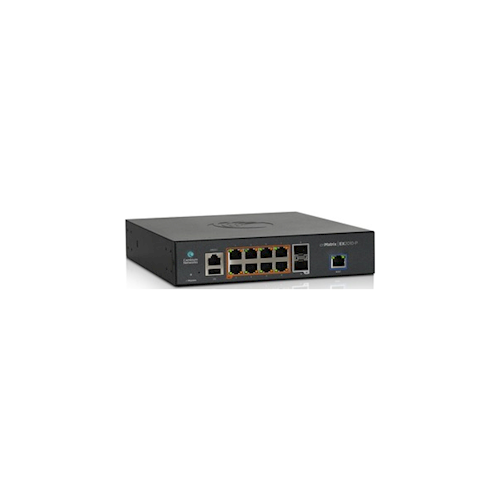

Cambium cnMatrix EX2010-P 8 1G and 2 SFP Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$1,087.10
(Inc. GST)
Availability:

Est. Delivery:
Brand:
Man. Part #:
MX-EX2010PXA-N
Our Part #:
MX-EX2010PXA-N
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About MX-EX2010PXA-N Price Match MX-EX2010PXA-N
Cambium Networks cnMatrix EX2010-P, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U

cnMatrix Switch EX2010-P

Improve network performance while reducing the time and cost of provisioning and management

cnMatrix™ EX2010-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network with cnMatrix EX2010-P.
Management features
Switch type
What switch device has, managed or unmanaged.
Managed
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2/L3
Quality of Service (QoS) support
Y
Web-based management
Using a website/web application to manage something.
Y
Cloud-managed
Y
Traffic classification
Y
Traffic shaping
Y
Configuring Location Settings (CLI)
Y
System event log
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
8
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device.
2
Console port
RS-232
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3u
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
N
Copper ethernet cabling technology
10BASE-T,100BASE-TX,1000BASE-T
Port mirroring
Y
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Rate limiting
Y
Spanning tree protocol
Y
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
VLAN support
A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.
Y
Virtual LAN features
Port-based VLAN,Tagged VLAN
Number of VLANs
4000
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
20 Gbit/s
Throughput
120 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
16000 entries
Number of queues
8
Static route
Y
Number of static routes
64
Jumbo frames support
Y
Jumbo frames
9000
Security
DHCP features
DHCP client,DHCP relay,DHCP server,DHCP snooping
Access Control List (ACL)
Y
IGMP snooping
Y
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
HTTPS,SSH,SSH-1.5,SSH-2,SSL/TLS
BPDU filtering/protection
Y
Authentication
Port-based authentication
Password protection
The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Y
Authentication type
Authentification means proving identity to gain access to sometheng. There are various types of authentification exist e.g. access card, password, biometric data.
IEEE 802.1x,RADIUS
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
Multicast features
Multicast support
Y
Protocols
Management protocols
SNMP v1/v2/v3, Telnet
Design
Rack mounting
The type of mounting that can position devices in a shelving system (rack).
Y
Form factor
The shape or design of the product.
1U
Product colour
The colour e.g. red, blue, green, black, white.
Black
Reset button
Y
LED indicators
Y
Performance
Built-in processor
Whether or not a processor is built into the device.
Y
Processor frequency
The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
800 MHz
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
512 MB
Flash memory
128 MB
Fanless
Y
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
338917 h
Power
Power supply included
There is a power supply with this product.
Y
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
Power consumption (max)
The maximum amount of power used by the device.
10.54 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Power over Ethernet (PoE) ports quantity
8
Power over Ethernet (PoE) voltage
One of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
54 V
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
100 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
55 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
210 mm
Depth
The distance from the front to the back of something.
250 mm
Height
The measurement of the product from head to foot or from base to top.
44 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
1.99 kg
