Home » More » Point of Sale (POS) » Barcode Scanners » Zebra DS2208-SR7U2100SGW

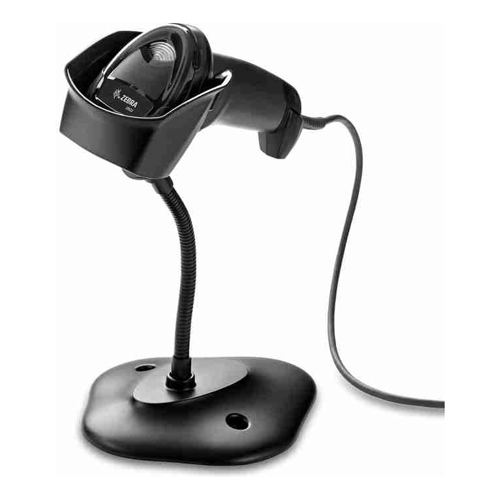

[DS2208-SR7U2100SGW] Zebra DS2208 1D/2D Handheld Corded Scanner Kit, Shielded USB Cable Stand Included

Zebra DS2208 1D/2D Handheld Corded Scanner Kit Shielded USB Cable Stand Included Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$131.71
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
DS2208-SR7U2100SGW
Our Part #:
DS2208-SR7U2100SGW
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About DS2208-SR7U2100SGW Price Match DS2208-SR7U2100SGW
Zebra DS2208, Handheld bar code reader, 1D/2D, LED, Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39, 640 x 480 pixels

AFFORDABILITY AND SIMPLICITY DELIVERED
2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards.

Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store.

But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278. The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.
Scanning
Type
Characteristics of the device.
Handheld bar code reader
Scanner type
Indicates the type of scanner this product is.
1D/2D
Sensor type
A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.
LED
Linear (1D) barcodes supported
The product can read linear (1D) barcordes.
Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,U.P.C.
2D (matrix & stacked) barcodes supported
The product can read matrix (2D) barcordes.
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
640 x 480 pixels
Working distance
36.8 cm
Wavelength
The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light.
645 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Yaw reading angle
-65 - 65°
Motion tolerance (cm/s)
13
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Standard interfaces
Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.
USB, RS-232, RS-485, Keyboard wedge
Bluetooth version
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
4.0
Bluetooth Low Energy (BLE)
Y
Performance
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IP42
LED indicators
Y
Product colour
The colour e.g. red, blue, green, black, white.
Black
Certification
EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B
Power
Power source type
What the power source is.
DC
Battery technology
The type of battery in the device, e.g. nickel–cadmium (NiCd).
Lithium-Ion (Li-Ion)
Battery capacity
A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.
2400 mAh
Battery life
The amount of time that the battery will last for.
100 h
AC adapter output voltage
5 V
Power consumption
250 mA
Weight & dimensions
Width
The measurement or extent of something from side to side.
66 mm
Depth
The distance from the front to the back of something.
99 mm
Height
The measurement of the product from head to foot or from base to top.
165 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
161.6 g
Packaging data
Cables included
Micro-USB
Charging base
N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 50 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Technical details
Sustainability certificates
RoHS
