Home » Networking » Networking Accessories » Other Accessories » TP-Link MC220L

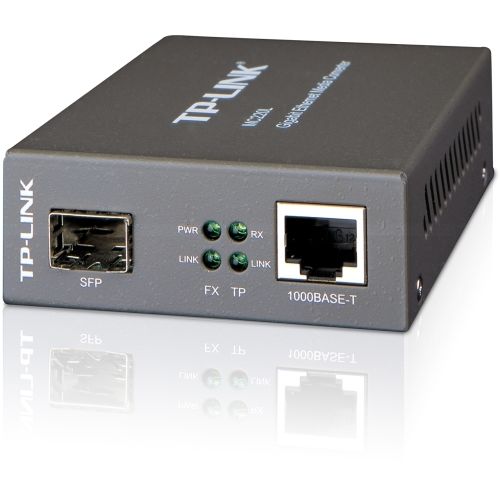

[MC220L] TP-Link 1000M RJ45 to 1000M single-mode LC fiber Converter, SFP Slot Supporting MiniGBIC Modules

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.

Our Price:

$39.00

(Inc. GST)

Availability:

Online

Free Shipping to all Stores

Est. Delivery:

Brand:

TP-Link

Man. Part #:

MC220L

Our Part #:

MC220L

Model #:

MC220L

Calculate Delivery Cost

Postcode:

Please enter a postcode to caculate shipping prices.

Print this Page Ask Us About MC220L Price Match MC220L

TP-LINK MC220L, 1000 Mbit/s, IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5,Cat5e,Cat6

Description
Specifications

The MC220L is a media converter designed to convert 1000BASE-SX/LX fiber to 10/100/1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T standards, the MC220L communicates with any TP-Link standard gigabit SFP fiber module*.
* TP-Link does not maintain a third party SFP module compatibility list and does not guarantee all SFP modules work with this product.

Network

Maximum data transfer rate

The maximum speed with which data can be transmitted from one device to another.

1000 Mbit/s

Networking standards

The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.

IEEE 802.3ab,IEEE 802.3x,IEEE 802.3z

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

The different speed levels of the Ethernet LAN connection.

10,100,1000 Mbit/s

Auto MDI/MDI-X

A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.

Duplex system

A duplex communication system is a point-to-point system composed of two connected parties or devices that can communicate with one another in both directions, simultaneously.

Full, Half

Cable types supported

Cat5,Cat5e,Cat6

Ports & interfaces

Connectivity technology

The technology that enables connectivity of the device, e.g. wired or wireless.

Wired

Ethernet LAN (RJ-45) ports

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

Fiber ports quantity

The number of sockets (ports) for fibers (cables).

Fiber optic connector

This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.

SFP

Performance

Maximum transfer distance

The greatest distance over which the data/signal can be transferred.

10000 m

Fiber mode structure

Multi-mode, Single-mode

Design

Internal

The product is built in.

LED indicators

Product colour

The colour e.g. red, blue, green, black, white.

Black

Power

Power consumption (max)

The maximum amount of power used by the device.

1.7 W

Weight & dimensions

Width

The measurement or extent of something from side to side.

94 mm

Depth

The distance from the front to the back of something.

73 mm

Height

The measurement of the product from head to foot or from base to top.

27 mm

Operational conditions

Operating temperature (T-T)

The minimum and maximum temperatures at which the product can be safely operated.

0 - 40 Â°C

Storage temperature (T-T)

The minimum and maximum temperatures at which the product can be safely stored.

-40 - 70 Â°C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

5 - 90%

Technical details

Sustainability certificates

RoHS
