Home » Networking » Networking Accessories » Other Accessories » Ubiquiti PS-5AC

[PS-5AC] Ubiquiti 5Ghz Prism Station 14dBi 5GHz Wi-Fi PoE Acess Point

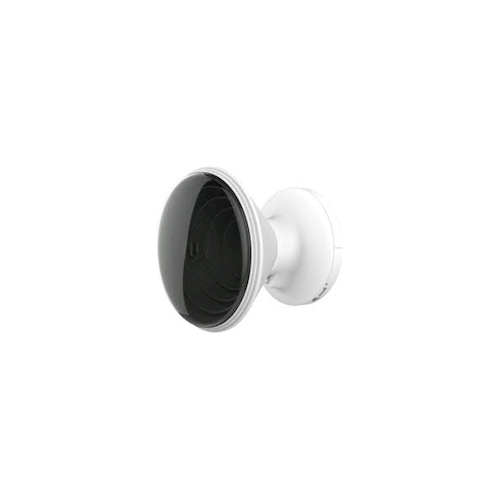

Ubiquiti 5Ghz Prism Station 14dBi 5GHz Wi-Fi PoE Acess Point Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$537.50
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
PS-5AC
Our Part #:
PS-5AC
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About PS-5AC Price Match PS-5AC
Ubiquiti Networks PrismStation 5AC, 500 Mbit/s, 10,100,1000 Mbit/s, 5.150 - 5.875 GHz, 28 dBmW, 24 V, 1 A

Shielded airMAX® ac BaseStation with airPrism® Technology
With a die-cast aluminum base and interchangeable antenna, the PrismStationTM AC, brings increased performance to your network using technology that isolates beam communications between your devices. Utilizing Ubiquiti's advanced airMAX® ac processor, the PrismStationTM delivers throughput speeds up to 500+ Mbps and signal ranges up to 5+ km (3+ miles).

Built to Fight Noise With Prism Active RF Filter
The Ubiquiti R&D team designed airPrism filtering as a robust solution for tower co-location interference. Requiring no communication between radios – and functioning despite noise from other vendors’ radios (unlike GPS synchronization) – airPrism enables greater system capacity and overall throughput by further reducing out-of-band energy.

Modular Design
The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The PrismStationTM AC also gets maximum gain out of the smallest footprint.

Beam Performance Perfected
The PrismStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

GPS Synchronization
PrismStationTM AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.

Enhanced Co-Location
Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity
PrismStationTM AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Management Wi-Fi Radio
The PrismStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Advanced Software
Sporting an all-new design for improved usability, airOS® 8 is the revolutionary operating system for Ubiquiti® airMAX® ac products.
Features
2.4 GHz
N
5 GHz
Y
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
500 Mbit/s
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
5.150 - 5.875 GHz
Transmitting power
28 dBmW
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Power
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Output voltage
24 V
Output current
1 A
Power consumption (max)
The maximum amount of power used by the device.
10 W
Design
Placement
Where the product can be placed e.g. floor, wall.
Pole
Product colour
The colour e.g. red, blue, green, black, white.
White
Certification
FCC, IC, CE
Internal
The product is built in.
N
Performance
Built-in processor
Whether or not a processor is built into the device.
Y
Flash memory
16 MB
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
128 MB
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
AirOS
Operational conditions
Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 70 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
155 mm
Depth
The distance from the front to the back of something.
104 mm
Height
The measurement of the product from head to foot or from base to top.
155 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
770 g
Packaging data
PoE adapter included
Y
Mounting kit
Y
