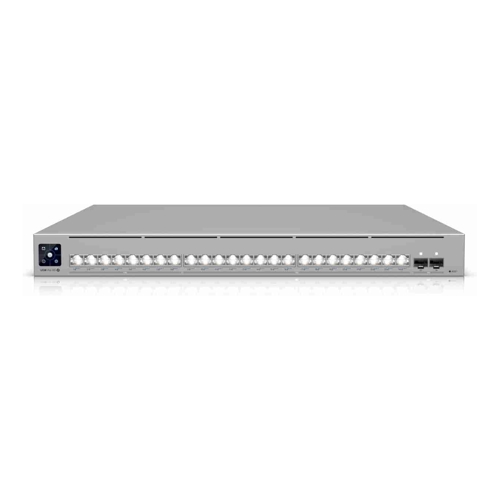

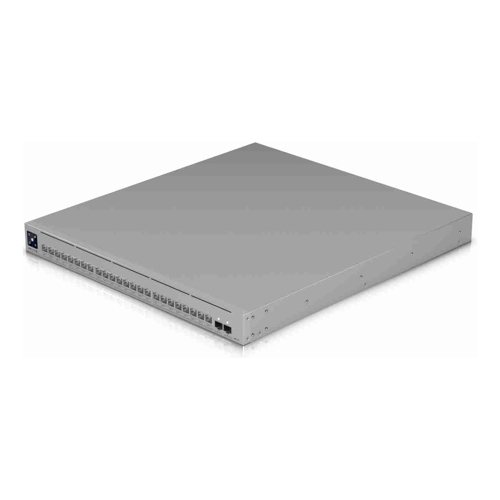

[USW-Pro-XG-24-PoE] Ubiquiti | USW-Pro-XG-24-PoE | UniFi 24 Port (16x 10G PoE+++, 8x 2.5G PoE+++) Layer 3 Etherlighting Switch, with 2x 25G SFP28 Ports

Elevate your network to a new echelon of performance and capability with the Ubiquiti UniFi USW-Pro-XG-24-PoE. This professional-grade, Layer 3 Etherlighting switch is engineered for the most demanding network environments, offering an impressive combination of high-speed connectivity and robust power delivery. With sixteen 10GbE RJ45 ports and an additional eight 2.5GbE RJ45 ports, all equipped with PoE+++ (90W) capabilities, this switch is designed to power a new generation of high-performance devices such as Wi-Fi 6/7 access points, advanced security cameras, and other power-hungry network hardware. The substantial 720W total PoE budget ensures you have the power you need for a dense and powerful network deployment.

Beyond its impressive Power over Ethernet capabilities, the USW-Pro-XG-24-PoE provides formidable uplink potential with two 25G SFP28 ports, ensuring that your network backbone can handle the immense traffic generated by the high-speed downlink ports. This makes it an ideal core or aggregation switch for enterprise networks, data centres, and professional AV installations. The innovative Etherlighting feature on the ports provides instant visual identification of port location, speed, link status, and native VLAN, simplifying network management and troubleshooting. This, combined with a 1.3" touchscreen for at-a-glance system insights, offers an unparalleled user experience.

The USW-Pro-XG-24-PoE is not just about raw power and speed; it also delivers a comprehensive suite of Layer 3 switching features, including inter-VLAN routing, static routing, and DHCP server functionality. This allows for the creation of scalable and efficient network designs. For enhanced reliability, the switch is ready for DC power backup through a UniFi SmartPower RPS, providing redundancy in case of an internal power supply failure. Housed in a durable 1U rack-mountable chassis, this switch is built to perform and last in any professional setting.

Managed through the intuitive UniFi Network application, you can configure, monitor, and manage your network from anywhere. The centralised platform offers robust configuration options, detailed analytics, and remote firmware upgrades, making it easier than ever to maintain a high-performance network. Whether you are building a future-proof network for a large enterprise or a high-density environment requiring the ultimate in speed and power, the USW-Pro-XG-24-PoE is the definitive choice for uncompromising performance.

FEATURES

• (16) 10GbE PoE+++ RJ45 ports
• (8) 2.5GbE PoE+++ RJ45 ports
• (2) 25G SFP28 ports for high-speed uplinks
• Etherlighting ports for visual identification of port status
• 720W total PoE availability with PoE+++ (90W per port) support
• Comprehensive Layer 3 switching features
• 1.3" LCM colour touchscreen for system insights
• DC power backup ready for enhanced reliability
• Managed with the UniFi Network application
• 1U rack-mountable form factor

SPECIFICATIONS

• Total Non-Blocking Throughput: 230Gbps
• Switching Capacity: 460Gbps
• Forwarding Rate: 342Mpps
• PoE Interfaces: 24 x PoE+++ (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
• Max. PoE+++ Wattage per Port by PSE: 90W
• Total PoE Budget: 720W
• Power Method: (1) Universal AC input, 100-240V AC; (1) USP-RPS DC input
• Power Supply: AC/DC, Internal, 870W
• Management Interface: Ethernet In-Band
• Networking Interfaces: (16) 100/1,000/2,500/5,000/10,000 Mbps RJ45 Ethernet; (8) 10/100/1,000/2,500 Mbps RJ45 Ethernet; (2) 1/10/25 Gbps SFP28
• Display: 1.3" Touchscreen
• Enclosure Material: SGCC Steel
• Dimensions: 442 x 480 x 44mm
• Weight: 8kg (with mounting brackets)
• Operating Temperature: -5 to 40C
• Operating Humidity: 10 to 90% non-condensing

WARRANTY

1-Year Limited Warranty
