Home » Networking » Networking Accessories » Other Accessories » Ubiquiti UMA-D

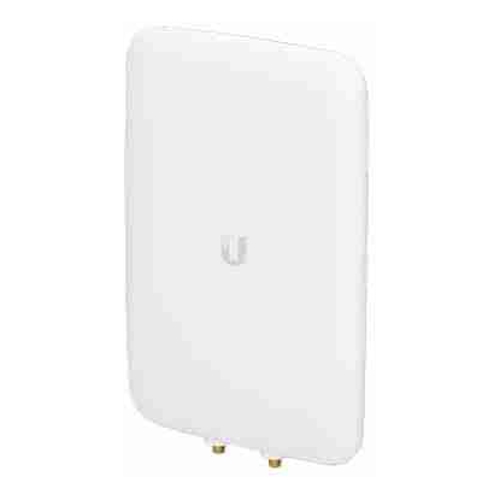

[UMA-D] Ubiquiti | Unifi UAP | UMA-D Directional Dual-Band High Gain Mesh Antenna for UAP-AC-M

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$172.18
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
UMA-D
Our Part #:
UMA-D
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About UMA-D Price Match UMA-D
Ubiquiti Networks UMA-D, 15 dBi, 2.4 - 2.5, 5.1 - 5.9 GHz, IEEE 802.11ac, 10 dBi, 15 dBi, 90°

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting
The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.
Performance
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
2.4 - 2.5, 5.1 - 5.9 GHz
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11ac
Antenna gain (2.4 GHz)
10 dBi
Antenna gain (5 GHz)
15 dBi
Horizontal beam width (2.4 GHz)
90°
Vertical beam width (2.4 GHz)
90°
Horizontal beam width (5 GHz)
45°
Vertical beam width (5 GHz)
45°
Antenna gain level (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
15 dBi
Features
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
Directional antenna
Antenna connector type
The way in which the antenna is connected to the device e.g. coaxial.
RP-SMA
Polarization
Dual polarization
Voltage Standing Wave Ratio (VSWR)
2:1
Mounting
What size the mounting head of the product is, to couple it with a camera.
Wall/Pole
Purpose
What the product is used for.
Indoor & outdoor
Compatible products
Other products that can be used with this product.
UAP-AC-M
Housing material
What the casing of the product is made of.
Plastic
Product colour
The colour e.g. red, blue, green, black, white.
White
Weight & dimensions
Width
The measurement or extent of something from side to side.
128 mm
Depth
The distance from the front to the back of something.
32.5 mm
Height
The measurement of the product from head to foot or from base to top.
201.3 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
480 g
Packaging content
Quantity per pack
1 pc(s)
Mounting kit
Y
