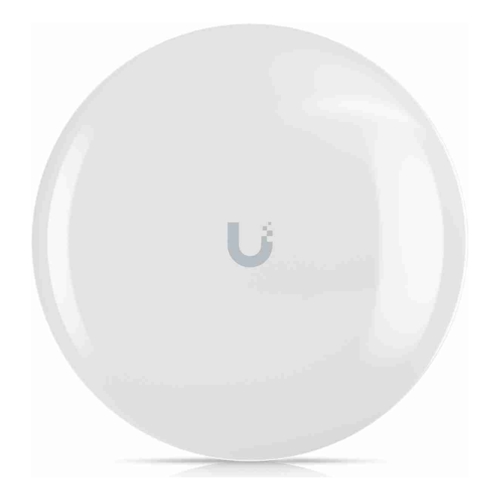

[UDB-Pro] Ubiquiti | UDB-Pro | UniFi Device Bridge Pro

The Ubiquiti UniFi Device Bridge Pro (UDB-Pro) is a high-performance 5GHz wireless bridge designed for robust outdoor network extension. This device excels at establishing stable, high-speed connections over distances of 5km or more, making it ideal for connecting remote buildings, extending surveillance networks, or linking distant UniFi access points without the need for extensive trenching or cabling. Engineered with an IPX6 weatherproof rating and constructed from UV-resistant polycarbonate and stainless steel, the UDB-Pro is built to withstand harsh Australian outdoor conditions, ensuring reliable performance year-round. It seamlessly integrates into your existing UniFi ecosystem, simplifying management through the UniFi Network Controller.

Equipped with two Gigabit Ethernet ports, the UDB-Pro not only provides a high-throughput wireless uplink but also offers Power over Ethernet (PoE) output on one port. This convenient feature allows you to power a connected UniFi device, such as an access point or camera, directly from the bridge, reducing cabling complexity and the need for additional power outlets at your remote deployment site. With support for Wi-Fi 5 (802.11ac) and a maximum data rate of 867Mbps (BW80), the UDB-Pro delivers impressive wireless speeds for demanding applications, ensuring smooth data transfer across your extended network.

The UDB-Pro's intelligent design includes internal antennas with 19dBi gain for optimised long-range performance and a simple factory-reset button for easy troubleshooting. Its integrated LEDs provide clear status indications for power, Ethernet activity, and signal strength, aiding in quick and accurate alignment during installation. While designed for robust outdoor deployment, it's important to note that the UDB-Pro requires management via a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server, ensuring a centralised and cohesive network experience.

FEATURES

• 5GHz wireless connectivity with a maximum range of 5+km
• 867Mbps maximum data rate (BW80)
• (2) Gigabit Ethernet RJ45 ports with (1) passive PoE output
• IPX6 weatherproof rating for outdoor use
• UV-resistant polycarbonate enclosure and UV-stabilised polycarbonate/stainless steel mount material
• Seamless integration and management within the UniFi ecosystem

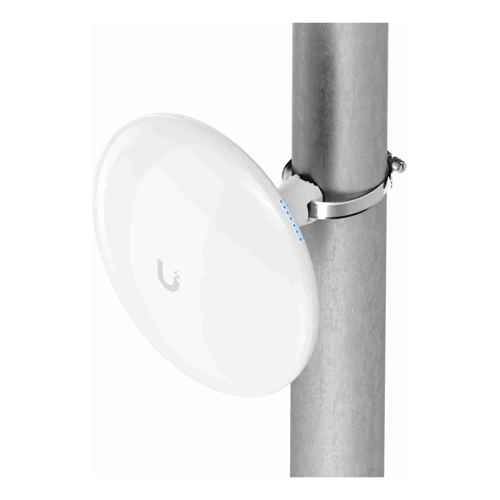

• Pole and wall mounting options included
• Internal antennas with 19dBi gain
• Powered by PoE/PoE+ (PoE adapter included, PoE+ required for PoE passthrough)

SPECIFICATIONS

• Dimensions: 189.5 x 64.3mm
• Weight: 431g (device only); 515g (with mount)
• Enclosure Material: UV-resistant polycarbonate
• Mount Material: UV-stabilised polycarbonate, stainless steel
• Pole Mount Diameter: 20-53.1mm
• Wind Loading: 69N at 200km/h
• Weatherproofing: IPX6
• Networking Interface: (2) GbE RJ45 ports
• Management Interface: Ethernet, WiFi
• PoE Interface: (1) PoE in (PoE output not used), (1) Passive PoE output
• Power Method: PoE, PoE+ (Required for PoE output)
• Power Supply: 48V, 0.32A PoE adapter (Included)
• Supported Voltage Range: 42.5-57V DC
• Max. Power Consumption: 9W
• WiFi Standard: WiFi 5 (802.11a/n/ac)
• Spatial Streams: 2
• MIMO (5GHz): 2 x 2
• Max. Data Rate (5GHz): 867Mbps (BW80)
• Antenna Gain (5GHz): 19dBi
• Max. TX Power (5GHz): 25dBm
• Max. Conducted TX Power: 25dBm (Combined)
• Wireless Security: WPA2 AES (Always On)
• Operating Frequency: 5150-5875MHz (Worldwide)
• Channel Bandwidth: 20/40/80MHz
• Ambient Operating Temperature: -40 to 60C
• Ambient Operating Humidity: 5 to 95% non-condensing
• Certifications: CE, FCC, IC

WARRANTY

1-Year Limited Warranty
