| Standards and Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
|---|---|
| Interface | 8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity | 1 (Intelligent fan speed adjustment) |
| External Power Supply | 100–240 VAC, 50/60 Hz, 0.8A |
| LED Indicator | • System Power: 1 • Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port |
| Dimensions ( W x D x H ) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Max Power Consumption | 31.2 W |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 160 Gbps |
| Packet Forwarding Rate | 119.0 Mpps |
| MAC Address Table | 32 K |
| Packet Buffer Memory | 2 Mb |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • 802.3X Flow Control • 802.1p/DSCP QoS |
| Transfer Method | Store and Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC ,RoHS |

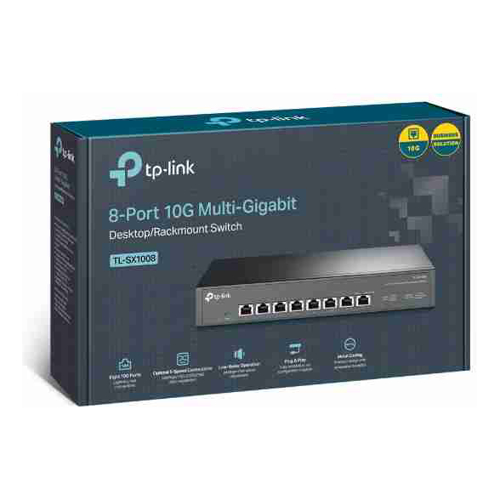

| Package Contents | • 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch TL-SX1008 • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
