Home » Networking » Wireless Access Points » TP-Link TL-WA801ND

[TL-WA801ND] TP-Link 300Mbps Wireless-N Access Point with Passive PoE

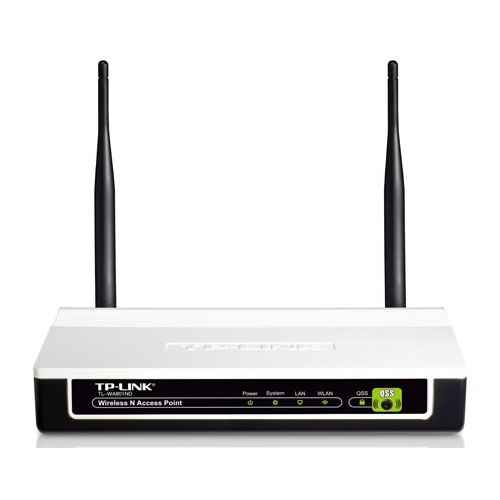

TP-Link 300Mbps Wireless-N Access Point with Passive PoE Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$46.79
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
TL-WA801ND
Our Part #:
TL-WA801ND
Model #:
TL-WA801ND
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About TL-WA801ND Price Match TL-WA801ND
TP-LINK TL-WA801ND, 300 Mbit/s, 10,100 Mbit/s, 2.4 - 2.4835 GHz, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, 10/100Base-T(X), 16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM

What This Product Does
The TP-LINK Wireless N Access Point TL-WA801ND is designed to establish or expand a scalable high-speed wireless N network or to connect multiple Ethernet enabled devices such as game consoles, digital media adapters, printers, or network attached storage devices to a wireless network. The APs support a host of different functions that makes your wireless networking experience more flexible than ever before. Now, you can enjoy a better Internet experience when downloading, gaming, video streaming or with any other application that you may wish to use.

Wireless N - Speed & Range
Adopting IEEE 802.11n advanced MIMO (Multi Input Multi Output) technology, it simultaneously works through two antennas to Tx and Rx to overcome the interference and signal degradation when traveling long distances or through physical barriers in a small office or a large apartment, resulting in an incredible improvement in the wireless performance, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

Multiple Operating Modes
- Easy to Build WLAN
Supports multiple operation modes (Access Point, Multi-SSID, Client, Universal/ WDS Repeater, Bridge with AP) to enable various wireless applications to give users a more dynamic and comprehensive experience when using their AP. Multiple operating mode also helps you easily to build wireless network for hard-to-wire locations or eliminating wireless dead zone.

Passive PoE Supported
- More Flexible Deployment
The TL-WA801ND is able to be powered using an Ethernet cable to simultaneously send data and electricity to wherever your AP may be located even up to 100 feet away. This feature multiplies your options allowing you to place the AP in a position that is most convenient to get the best signal possible, such as on the wall or on the ceiling of your office.
Features
2.4 GHz
Y
5 GHz
N
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
300 Mbit/s
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100 Mbit/s
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
2.4 - 2.4835 GHz
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Cabling technology
Type of cable technology performance.
10/100Base-T(X)
Modulation
Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.
16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM
Quality of Service (QoS) support
Y
Receiver sensitivity
270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
64-bit WEP,128-bit WEP,152-bit WEP,SSID,WPA,WPA-PSK,WPA2,WPA2-PSK,WPS
MAC address filtering
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Y
Protocols
Management protocols
SNMP
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Power
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Input voltage
The voltage (V) which is required to power the product.
9 V
Input current
0.6 A
Design
Placement
Where the product can be placed e.g. floor, wall.
Table, Wall
Product colour
The colour e.g. red, blue, green, black, white.
White
Reset button
Y
LED indicators
Y
Certification
CE, FCC, RoHS
Antenna
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
External
Antenna direction type
Omni-directional
Antenna features
Detachable antenna
Antennas quantity
2
Antenna gain level (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
5 dBi
Antenna connector type
The way in which the antenna is connected to the device e.g. coaxial.
RP-SMA
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Storage relative humidity (H-H)
5 - 90%
Weight & dimensions
Width
The measurement or extent of something from side to side.
181 mm
Depth
The distance from the front to the back of something.
125 mm
Height
The measurement of the product from head to foot or from base to top.
36 mm
Packaging data
AC adapter included
Y
