Home » Networking » Wireless Signal Boosters » TP-Link CPE210

[CPE210] TP-Link 2.4GHz, 300Mbps, 9Dbi Outdoor CPE, 2x2 Dual MIMO Antenna, 3yr

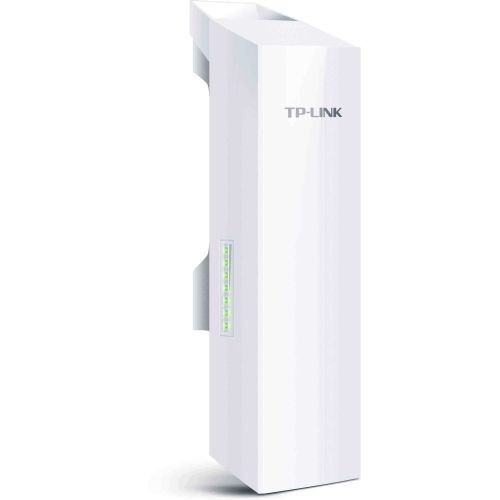

TP-Link 2.4GHz 300Mbps 9Dbi Outdoor CPE 2x2 Dual MIMO Antenna 3yr Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$79.00
(Inc. GST)
Availability:

Est. Delivery:
Brand:
Man. Part #:
CPE210
Our Part #:
CPE210
Model #:
CPE210
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About CPE210 Price Match CPE210
TP-LINK 2.4GHz 300Mbps 9dBi Outdoor CPE, 300 Mbit/s, 300 Mbit/s, 2.4 - 2.483 GHz, 2.4 GHz, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n, Multi User MIMO

TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40? (-40?) to +70 ? (158?).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Features
2.4 GHz
Y
5 GHz
N
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
300 Mbit/s
Maximum data transfer rate (2.4 GHz)
300 Mbit/s
Frequency band
A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.
2.4 - 2.483 GHz
Bandwidth
2.4 GHz
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
MIMO
Y
MIMO type
Multi User MIMO
Maximum outdoor range
The maximum distance to which the signals are transmitted, when the device is used outdoors.
5000 m
Receiver sensitivity
802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Security
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
64-bit WEP,128-bit WEP,152-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
MAC address filtering
Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Y
Protocols
Management protocols
TDMA
Management features
Web-based management
Using a website/web application to manage something.
Y
Management platform
Pharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Power
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Input voltage
The voltage (V) which is required to power the product.
100 - 240 V
Input current
0.8 A
Input frequency
The frequency (Hz) which is required to power the product.
50/60 Hz
Output voltage
24 V
Output current
1 A
Power consumption (max)
The maximum amount of power used by the device.
10.5 W
Design
Placement
Where the product can be placed e.g. floor, wall.
Wall
Product colour
The colour e.g. red, blue, green, black, white.
White
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IPX5
Reset button
Y
LED indicators
Y
Certification
- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Antenna
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
Internal
Antenna features
Integrated antenna
Antennas quantity
1
Antenna gain level (max)
Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.
9 dBi
Performance
Built-in processor
Whether or not a processor is built into the device.
Y
Processor model
The model number for the processor in a computer.
Qualcomm Atheros
Processor frequency
The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.
560 MHz
Flash memory
8 MB
Internal memory
The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.
64 MB
Compatible operating systems
List of desktop operating systems tested as compatible with this product.
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Operational conditions
Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-30 - 70 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
The measurement or extent of something from side to side.
224 mm
Depth
The distance from the front to the back of something.
79 mm
Height
The measurement of the product from head to foot or from base to top.
60 mm
Packaging data
Cables included
AC
Mounting kit
Y
