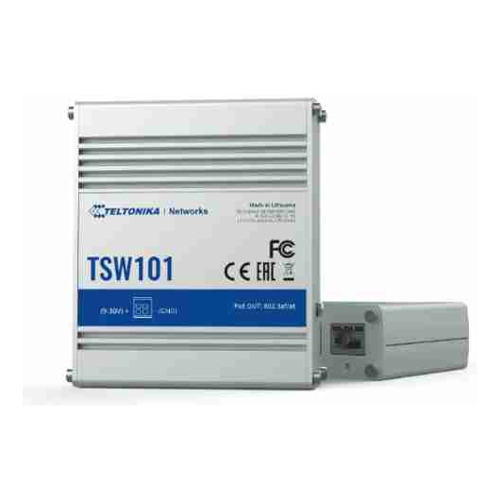

[TSW101] Teltonika | TSW101 | 5 Port Automotive Unmanaged Gigabit Switch with 4 Port PoE+ ** PSU not included **

#html-body [data-pb-style=KOBQHAB]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Teltonika | TSW101 | 5 Port Automotive Unmanaged Gigabit Switch with 4 Port PoE+? ** PSU not included **? Automotive PoE+ Switch The TSW101 is Teltonika Networks? first automotive-dedicated unmanaged switch. Equipped with five Gigabit Ethernet ports, four of which support IEEE802.3af and IEEE802.3at PoE+ standards. With a wide range of supported power supply voltages (9-30 VDC), and its compact size it can slot into many automotive applications. ? Classified as a power source equipment (PSE), this device enables power supply centralization - providing up to 30 watts per single port and maximum output power of 60 watts. While also providing?10/100/1000 Mbps Ethernet ports for streamlined, high-bandwidth solutions.?Ideal for providing both: in-vehicle power and an Ethernet data connection simultaneouslyFEATURES Ethernet 5 x RJ45 ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover PoE ports Port 1- 4 PoE standards 802.3af and 802.3at PoE Max Power per Port (at PSE) 30 W Total PoE Power Budget (at PSE) 60 W Maximum Ethernet cable length 100 m SPECIFICATIONS Bandwidth: (Non-blocking) 10 Gbps Packet buffer: 128 KB MAC address table size: 2K entries Jumbo frame support: 9216 bytes Connector: 2-pin industrial DC power socket Input voltage range: 9-30 VDC Input voltage range for PoE:? 9-30 VDC Power consumption Idle: 0.64 W / Max: 2.31 W / PoE Max: 60 W Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps Status LEDs: 1 x Power LED, 10 x LAN status LEDs Power: 1 x 2-pin industrial DC power socket Ground: 1 x Grounding screw Casing material: Aluminum housing Dimensions: (W x H x D) 115 x 32 x 95 mm Weight: 354 g Mounting: DIN rail or wall mounting (additional kit needed), flat surface placement Operating temperature: -40 ?C to +75 ?C Operating humidity: 10 % to 90 % non-condensing Ingress Protection Rating: IP30 Regulatory: CE, REACH, RoHS, WEEE, CE, UKCA, FCC, IC, CB, RCM and E-Mark CONTENTS TSW101 QSG (Quick Start Guide) ACCESSORIES (Not included) Power Supply Unit (REQUIRED): TT.PR2FK20M | Power cable with 4-way screw terminal TT.PR2PL15B | Power cable with 4-way open wire TT.PR2PD01B | 4-PIN to barrel socket adapter TT.PR2AM20M | Automotive 12/24V Mounting Options: TT.PR5MEC12 | Surface mounting KIT TT.PR5MEC11 | Compact 35mm DIN Rail KIT TT.PR5MEC00 | Large DIN Rail KIT WARRANTY2-years limited warranty
