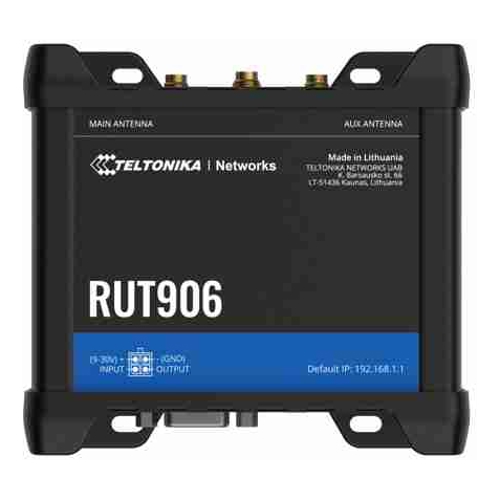

[RUT906] Teltonika | RUT906 | Dual SIM 4G LTE RS232 / RS485 Industrial Cellular Router

The Teltonika RUT906 is a robust and versatile industrial cellular router designed for a wide range of IoT and M2M applications in Australia. Featuring dual SIM capability with auto-failover, this router ensures continuous connectivity by automatically switching to a backup SIM card if the primary connection is lost. Its 4G LTE Cat 4 support provides download speeds up to 150Mbps, ensuring sufficient bandwidth for demanding applications. With four 10/100 Ethernet ports, WiFi 4, RS232, RS485, and digital I/O, the RUT906 offers extensive connectivity options for integrating diverse industrial equipment. The inclusion of a 9-30VDC power supply and a rugged design make it suitable for deployment in various industrial environments.

FEATURES

• Dual SIM with auto-failover for network redundancy
• 4G LTE Cat 4 connectivity for high-speed cellular access
• RS232 and RS485 serial interfaces for industrial device communication
• Digital Input/Output for remote monitoring and control
• WiFi 4 (802.11 b/g/n) for local wireless networking
• GNSS support for location services and time synchronisation

SPECIFICATIONS

• Mobile Connectivity: 4G LTE Cat 4 (up to 150Mbps DL/50Mbps UL), 3G, 2G
• SIM Slots: 2 x Mini SIM
• Ethernet: 4 x 10/100Mbps ports (1 x WAN, 3 x LAN)
• WiFi: IEEE 802.11 b/g/n (WiFi 4), Access Point and Station modes
• Serial Interface: 1 x RS232, 1 x RS485
• Digital I/O: 2 x Digital Inputs, 2 x Digital Outputs on a 10-pin industrial socket; 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• USB: 1 x USB 2.0 Host
• GNSS: GPS, GLONASS, BeiDou, Galileo and QZSS
• Power Supply: 9-30VDC (9W PSU included)
• Operating Temperature: -40C to 75C
• Housing: Aluminium with plastic panels
• Dimensions: 109.5mm x 50mm x 100mm
• Weight: 295g

WARRANTY

2-Year Limited Warranty
