#html-body [data-pb-style=VCKVWOB]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Teltonika | PR1KCO28 | Combo MIMO Mobile / GNSS / WiFi Roof SMA Antenna | Suitable for RUT2xx, RUT9xx, RUT360, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTXR1Maximize your mobile connectivity with the Teltonika PR1KCO28 Combo MIMO Mobile/GNSS/WiFi Roof SMA Antenna, purpose-built for compatibility with RUT200, RUT240AU, RUT241, RUT360, RUT901, RUT950, RUT951, RUT955AU, RUT956, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14 and RUTXR1 routers. This versatile antenna integrates three key functionalities to optimize your network performance: GNSS, LTE MIMO, and WiFi MIMO. The GNSS antenna, operating in the frequency range of 1575 ~ 1610 MHz, ensures accurate positioning and navigation with a RHCP polarization. With a powerful LNA gain of 28 2 dB and low noise figure of 1.5 dB, it provides enhanced sensitivity for precise location services. The LTE MIMO antenna spans the frequencies of 698 ~ 960 and 1710 ~ 2690 MHz, offering robust cellular connectivity with its linear polarization and 3.0 dBi gain. The WiFi MIMO antenna covers the frequencies from 2400 ~ 2483 and 4900 ~ 5825 MHz, delivering high-speed wireless connectivity with a 2.0 dBi gain. Designed for durability and ease of installation, the PR1KCO28 features a robust black ABS radome with an IP65 ingress projection rating, ensuring protection against harsh environmental conditions. The screw-mounting method simplifies installation, making it suitable for a variety of applications. With a cable length of 3000 mm and compliance with RoHS standards, this antenna offers a comprehensive solution for enhancing your mobile, GNSS, and WiFi capabilities, weighing in at a lightweight 550 g. Upgrade your Teltonika routers with the PR1KCO28 for reliable and efficient tri-functional connectivity.SPECIFICATIONSGNSS Antenna Frequency range: 1575 ~ 1610 MHz Polarization: RHCP Impedance: 50 LNA gain: 28 2 dB LNA noise figure: 1.5 dB Supply voltage: 3.0 - 5.0 VDC Current consumption: 15 mA LNA VSWR: 2.0 Connector type: SMA Male LTE MIMO Antenna Frequency range: 698 ~ 960, 1710 ~ 2690 MHz Polarization: Linear Gain: 3.0 dBi VSWR: 3.0 Impedance: 50 Connector type: 2x SMA Male Wifi MIMO Antenna Frequency range: 2400 ~ 2483, 4900 ~ 5825 MHz Polarization: Linear Gain: 2.0 dBi VSWR: 2.5 Impedance: 50 Connector type: 2x RP-SMA Male Mechanical / Environmental Mounting method: Screw Radome ingress projection rating: IP65 Radome material: Black ABS Housing dimensions: 110 x 55 mm Cable: 5x RG174, 3000 mm RoHS compliant: Weight: 550 g WARRANTY2-years limited warranty

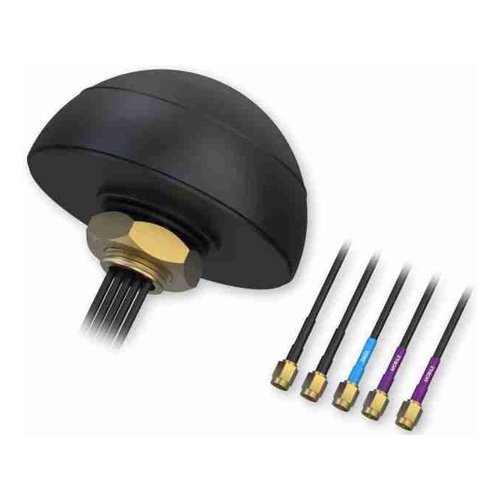

Click image for larger image.
