Home » Digital Storage » Accessories » IOCrest IO-PCE4X-U2

[IO-PCE4X-U2] IOCrest PCIe Gen x4 Mini SAS (SSF-8643) to U.2 Card

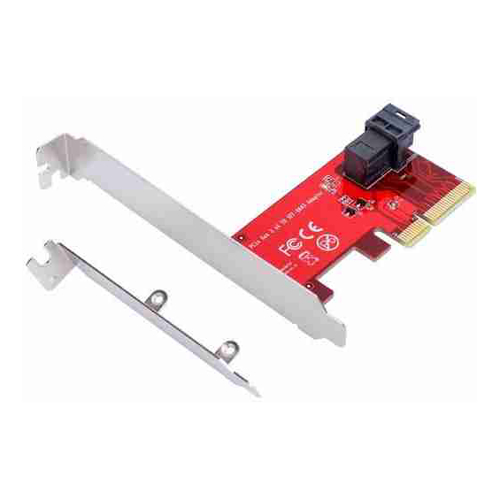

IOCrest PCIe Gen x4 Mini SAS (SSF-8643) to U.2 Card Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$59.00
(Inc. GST)
Availability:

Est. Delivery:
Brand:
Man. Part #:
IO-PCE4X-U2
Our Part #:
IO-PCE4X-U2
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About IO-PCE4X-U2 Price Match IO-PCE4X-U2
IOCREST PCIe Gen x4 Mini SAS (SSF-8643) to U.2 Card


IOCrest PCIe Gen x4 Mini SAS (SSF-8643) to U.2 Card

This SFF-8643 PCIe 4X adapter is designed for connecting the high performance 2.5″ NVMe U.2 (SFF-8639) SSD to a PCIe 4-lane slot in a system via a SFF-8643 cable. The U.2 SSD could in loaded onto a backplane that has the SFF-8643 connector to interface with Adapter, allowing the U.2 SSD to be used like a drive cartridge.

  • Buit-in SFF-8643 plug connector
  • D1 ON indicate the card adapter Ready
  • Allow 2.5" NVMe U.2 (SFF-8639) SSD to connect to system via SFF-8643 cable
  • Maximum throughput of 32 Gbps when installed into a PCIe 3.0 4-lane slot
  • Maximum throughput of 16 Gbps when installed into a PCIe 2.0 4-lane slot
  • Maximum throughput of 8 Gbps when installed into a PCIe 1.0 4-lane slot
  • No drivers required for this converter
  • Industrial operating temperature: -40 °C to + 85 °C
  • OS requirement for NVMe SSD: Windows 10, Windows 7 and Windows server 2008 R2





Technical Specs
  • PCI Express Base Specification Rev 3.0
  • SFF -8643 Min SAS HD Version 3.5
  • PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
  •  NVM Express 1.0
  • Compatible with PCIe 3.0, 2.0 or 1.0
  • Operating Humidity: 5% - 95% (non condensing)
  • RoHS compliant



Operating System Support
  • Windows 7 / 8 / 8.1 / 10 64 bit
  • UEFI 2.3.1 or later
