Home » Networking » Network Switches » Gigabit Network Switches » D-Link DIS-100G-5SW

[DIS-100G-5SW] D-Link DIS-100G-5SW 5-Port Gigabit Industrial Switch with 4 1000BASE-T ports, 1 SFP port, operating tem

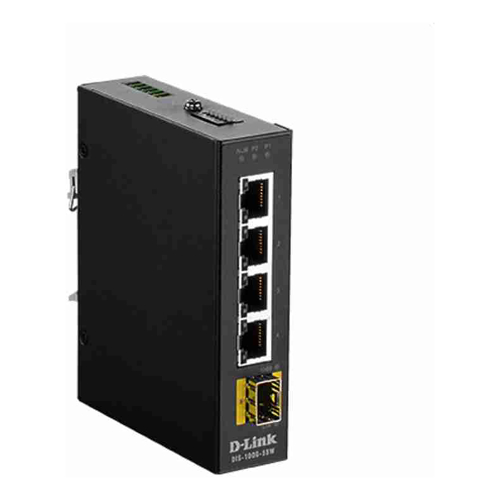

D-Link DIS-100G-5SW 5-Port Gigabit Industrial Switch with 4 1000BASE-T ports 1 SFP port operating tem Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$505.91
(Inc. GST)
Availability:

Est. Delivery:
Brand:
Man. Part #:
DIS-100G-5SW
Our Part #:
DIS-100G-5SW
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About DIS-100G-5SW Price Match DIS-100G-5SW
D-Link DIS-100G-5SW, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.

Durable, Reliable, and Efficient
The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. The fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.

Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.

Power over Ethernet Support
The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.

Green Ethernet Technology
The DIS-100G Series features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during
periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.

Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DIS-100G Series Gigabit Industrial Unmanaged Switches to further its commitment to product quality and long-term customer confidence.
Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Traffic shaping
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
4
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
N
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Flow control support
Y
Broadcast storm control
Y
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Y
Auto-negotiation
Y
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
2000 entries
Store-and-forward
Y
Jumbo frames support
Y
Jumbo frames
9000
Multicast features
Multicast support
Y
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
LED indicators
LAN, Power
Wall mountable
The product can be mounted on (attached to ) a wall.
Y
DIN rail mounting
Y
Electromagnetic compatibility
List of countries and their respective regulatory agency standards with which the product complies.
FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32; UL 60950-1, CE, FCC, RoHS, WEEE
Technical details
Shipping (inner) case height
20.5 cm
Shipping (inner) case width
30.5 cm
Shipping (inner) case length
44 cm
Shipping (inner) case net weight
5 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
220 kg
Master (outer) cases per pallet (air)
36 pc(s)
Products per pallet (air)
360 pc(s)
Pallet gross length
120 cm
Pallet gross width
110 cm
Pallet height (air)
136.5 cm
Pallet gross weight (sea)
321.6 kg
Master (outer) cases per pallet (sea)
54 pc(s)
Products per pallet (sea)
540 pc(s)
Pallet height (sea)
198 cm
Shipping (inner) case gross weight
5.64 kg
Power
DC input voltage
12 - 58 V
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
2.74 W
Power consumption (max)
The maximum amount of power used by the device.
3.57 W
Power protection features
Features that protect the device against power problems e.g. overload.
Over current, Reverse polarity
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
The heat generated by the power supply.
12.18 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
112.2 mm
Depth
The distance from the front to the back of something.
29.1 mm
Height
The measurement of the product from head to foot or from base to top.
89.4 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
295 g
Packaging data
Package width
The distance from one side of the packaging to the other.
140 mm
Package depth
The distance from the front to the back of the packaging.
178 mm
Package height
The distance from the top to the bottom of the packaging.
83 mm
Package weight
Weight of the packaged product.
500 g
