Home » Networking » Network Switches » Gigabit Network Switches » D-Link DIS-100G-5PSW

[DIS-100G-5PSW] D-Link DIS-100G-5PSW - 5-Port Gigabit Industrial PoE Switch with 4 1000BASE-T PoE ports and 1 SFP port

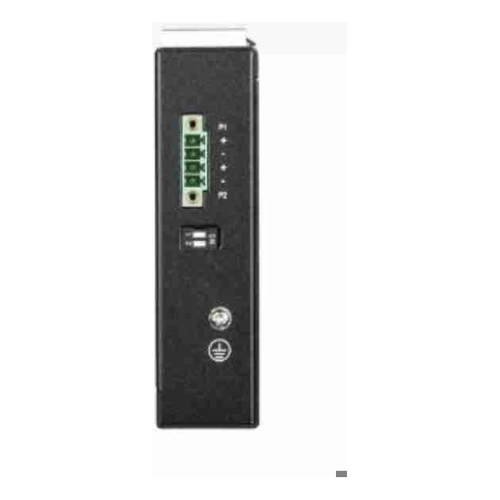

D-Link DIS-100G-5PSW 5-Port Gigabit Industrial PoE Switch with 4 1000BASE-T PoE ports and 1 SFP port Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$637.92
(Inc. GST)
Availability:

Est. Delivery:
Brand:
Man. Part #:
DIS-100G-5PSW
Our Part #:
DIS-100G-5PSW
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About DIS-100G-5PSW Price Match DIS-100G-5PSW
D-Link DIS-100G-5PSW, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Unmanaged Plug and Play with SFP and PoE
Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.

Gigabit Connectivity with PoE and SFP slots
Designed with 4 x 100/1000Base-T PoE ports and 1 x 100/1000Base SFP slot to suit a range of devices and network layouts.

Officially Certified
Certifications for vibration, shock, free-fall, and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

PoE Support
With its 120 W PoE power budget, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.

Discrete Size
Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.
Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Switch layer
A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).
L2
Traffic shaping
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
4
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
1
Fiber optic connector
This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.
LC
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
N
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Flow control support
Y
Broadcast storm control
Y
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Y
Auto-negotiation
Y
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
10 Gbit/s
Forwarding rate
7.44 Mpps
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
2000 entries
Store-and-forward
Y
Jumbo frames support
Y
Jumbo frames
9000
Multicast features
Multicast support
Y
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
LED indicators
LAN, PoE, Power
Wall mountable
The product can be mounted on (attached to ) a wall.
Y
DIN rail mounting
Y
Electromagnetic compatibility
List of countries and their respective regulatory agency standards with which the product complies.
FCC 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, -3, -4, -5, -6 (3)
Certification
IEC60068-2-6; IEC60068-2-27; IEC60068-2-32, UL 61010-1, UL C1D2, CE, FCC, RoHS, WEEE
Technical details
Shipping (inner) case height
24 cm
Shipping (inner) case width
38 cm
Shipping (inner) case length
39 cm
Shipping (inner) case net weight
7 kg
Products per shipping (inner) case
10 pc(s)
Pallet gross weight (air)
251.3 kg
Master (outer) cases per pallet (air)
30 pc(s)
Products per pallet (air)
300 pc(s)
Pallet gross length
120 cm
Pallet gross width
110 cm
Pallet height (air)
133.5 cm
Pallet gross weight (sea)
391.9 kg
Master (outer) cases per pallet (sea)
48 pc(s)
Products per pallet (sea)
480 pc(s)
Pallet height (sea)
2.06 m
Shipping (inner) case gross weight
7.81 kg
Power
DC input voltage
12 - 58 V
Power consumption (max)
The maximum amount of power used by the device.
120.2 W
Power protection features
Features that protect the device against power problems e.g. overload.
Over current, Reverse polarity
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Y
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) voltage range
54 - 58 V
Total Power over Ethernet (PoE) budget
120 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
-40 - 75 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
0 - 95%
Heat dissipation
The heat generated by the power supply.
410.12 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
139 mm
Depth
The distance from the front to the back of something.
29 mm
Height
The measurement of the product from head to foot or from base to top.
107 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
375 g
Packaging data
Package width
The distance from one side of the packaging to the other.
181 mm
Package depth
The distance from the front to the back of the packaging.
210 mm
Package height
The distance from the top to the bottom of the packaging.
75 mm
Package weight
Weight of the packaged product.
700 g
