Home » Networking » Network Switches » Gigabit Network Switches » D-Link DGS-1016S

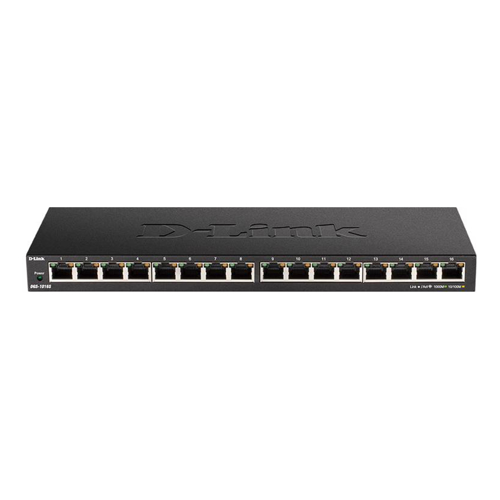

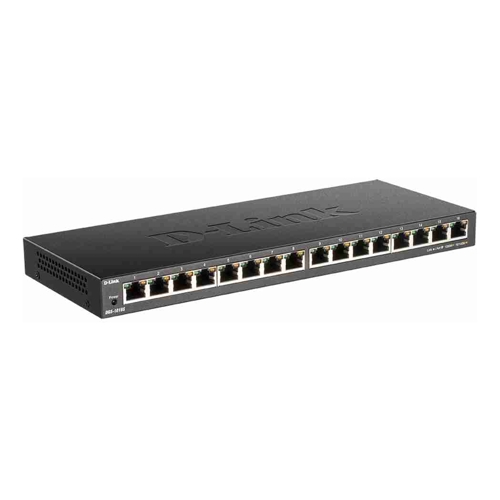

[DGS-1016S] D-Link | DGS-1016S | 16 Port Low Profile Gigabit Unmanaged Switch (Metal Housing)

Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$120.34
(Inc. GST)
Availability:

Est. Delivery:
1-3 days
Brand:
Man. Part #:
DGS-1016S
Our Part #:
DGS-1016S
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About DGS-1016S Price Match DGS-1016S
D-Link 16-Port Gigabit Unmanaged Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex

Slim, Low-Profile Design
Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking
Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation
Fanless design means the switch is virtually silent when in use

Energy Efficient
Integrated energy-saving technology to reduce power usage automatically

Connect More, Connect Faster
The 16-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

Silent and built to last
Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet
With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.
Management features
Switch type
What switch device has, managed or unmanaged.
Unmanaged
Quality of Service (QoS) support
Y
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
The number of basic switching RJ-45 Ethernet ports (sockets).
16
Basic switching RJ-45 Ethernet ports type
The type/category of basic switching RJ-45 Ethernet ports (sockets).
Gigabit Ethernet (10/100/1000)
Network
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1p,IEEE 802.3az,IEEE 802.3x
10G support
The product can use Oracle 10G, which is a database management system introduced in 2003.
N
Copper ethernet cabling technology
1000BASE-T
Full duplex
A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Y
Half duplex
Y
Flow control support
Y
Auto MDI/MDI-X
A Medium Dependent Interface (MDI) describes the interface (both physical and electrical) in a computer network from a physical layer implementation to the physical medium used to carry the transmission. Ethernet over twisted pair also defines a medium dependent interface crossover (MDIX) interface. Auto-MDIX ports on newer network interfaces detect if the connection would require a crossover, and automatically chooses the MDI or MDIX configuration to properly match the other end of the link.
Y
Auto-negotiation
Y
Cable length detection
Y
Data transmission
Switching capacity
The data transfer capacity of the switch per second.
32 Gbit/s
MAC address table
The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.
8000 entries
Store-and-forward
Y
Number of queues
8
Jumbo frames support
Y
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1488000 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffer memory
0.512 MB
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
LED indicators
Activity, Link, Power, Speed
Safety
List of regulatory safety standards for all countries in which this product has been certified.
LVD
Certification
CE, FCC, ICES 003, RCM
Performance
Plug and Play
Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
Y
Fanless
Y
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
564658 h
Power
DC input voltage
12 V
Input current
1 A
Power consumption (max)
The maximum amount of power used by the device.
8.89 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)
The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
N
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 95%
Heat dissipation
The heat generated by the power supply.
30.32 BTU/h
Weight & dimensions
Width
The measurement or extent of something from side to side.
280 mm
Depth
The distance from the front to the back of something.
110 mm
Height
The measurement of the product from head to foot or from base to top.
25 mm
Weight
Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.
770 g
