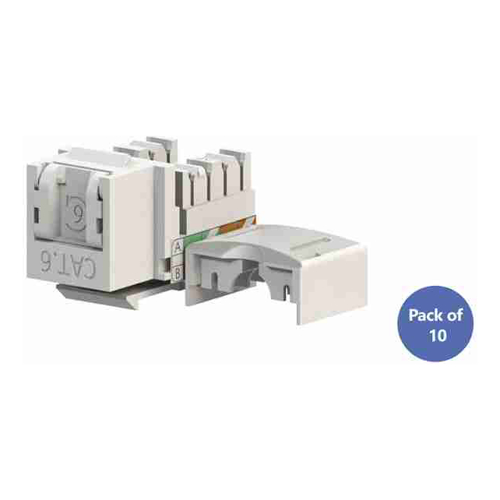

[010.004.0011] 4Cabling Cat 6 RJ45 Keystone Jack with Shutter 90 Degree | Pack of 10

Cat 6 RJ45 Keystone Jack with Shutter 90 Degree | Pack of 10 Compatible with keystone faceplates, surface mount boxes and patch panels*. Can be used with Australian HPM and CLIPSAL plates with the use of a bezel. Unique patented removable dust caps are handy to protect your outlets when not in use. *Due to the proximity of each port on a patch panel, if you try and use these jacks for the majority of the ports you may come across an issue of not being able to physically fit them all in. If you plan to use these to populate all or most of the ports on an unloaded patch panel we would recommend you use 010.004.1005. These are not only slimmer but they are also in black to match the colour of most patch panels. ? Features: Dual T568A and T568B Wiring RJ45 Complies with FCC Part 68 Standard 110/ Krone dual IDC connector compatible Provides termination for 22-26 AWG Wire Jack insertion life > 750 mating cycles IDC insertion life > 250 mating cycles Operating temperature -40 to + 60 degrees Celsius 3 Year Warranty ? Specifications:? Cat 6 Unshielded Colour: White Gold-Plating: 1.27um/50u inch IDC insertion life > 250 mating cycles Jack insertion life > 750 mating cycles Operating temperature -40 to + 60 degrees Celsius Contact: 0.46mm Diameter Phosphor Bronze Gold Plated over Nickel Dielectric withstanding voltage: 1000v Insulation Resistance: 500m ohm Contact resistance: 20m ohm DC resistance : Max 0.1 ohm DC Current rating: 1.5Amps ? Why ?: 100% Aussie owned and operated. Expert advice and sales team. Trusted by over 100,000 Aussie customers ISO 9001, NSW & QLD government approved supplier Massive stock levels, ready to go Lightning fast delivery nationwide Warranty & easy return policy Secure online shopping 24/7 ?
