Home » Networking » Network Adapters » Wired Network Adapters » Intel X550T2

[X550T2] Intel Ethernet X550T2 Server

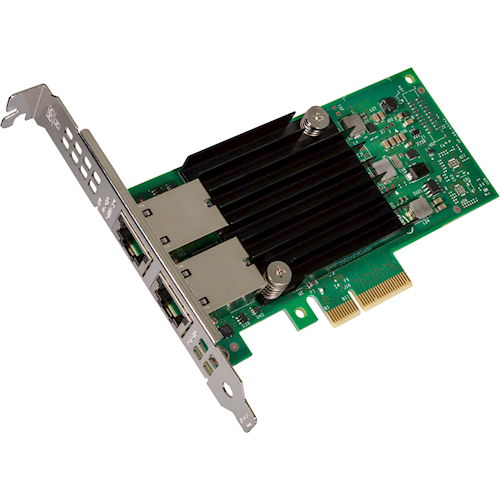

Intel Ethernet X550T2 Server Click image for larger image.

Product may vary from image. Rely only on description for purchasing decisions.
shadow
Our Price:
$188.78
(Inc. GST)
Availability:

Est. Delivery:
4+ Weeks
Brand:
Man. Part #:
X550T2
Our Part #:
X550T2
Calculate Delivery Cost
Postcode:
Please enter a postcode to caculate shipping prices.
shadow
Product Quantity:
Print this Page Ask Us About X550T2 Price Match X550T2
Intel X550T2, Internal, Wired, PCI Express, Ethernet, 10000 Mbit/s, Green, Silver

Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.

Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.

Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wired
Host interface
Interface that enables a host controller to communicate with a driver.
PCI Express
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
Ethernet
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
PCI version
3.0
PCI Card form factor
Design of the PCI Card.
Half-height (low-profile)
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
10000 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Y
Ethernet interface type
5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
100,1000,2500,5000,10000 Mbit/s
Cabling technology
Type of cable technology performance.
10GBase-T
VLAN tagging
Y
iSCSI support
Y
Maximum operating distance
The maximum distance from which you can operate the device.
100 m
LAN controller
Intel® X550
Design
Product colour
The colour e.g. red, blue, green, black, white.
Green, Silver
Internal
The product is built in.
Y
System requirements
Compatible operating systems
List of desktop operating systems tested as compatible with this product.
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Red Hat Enterprise Linux WS 5.0,Red Hat Enterprise Linux WS 6.0,SUSE Linux Enterprise Desktop 10,SUSE Linux Enterprise Desktop 11
Server operating systems supported
Windows Server 2003,Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2012 R2 x64
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 55 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Storage relative humidity (H-H)
0 - 90%
Other features
Data transfer rate
8 GT/s
Cable type
Type of cable e.g. electicity cable, optical cable.
RJ45 Category 6 up to 55m; Category 6A up to 100m
Number of VLANs
4096
Intel Virtual Machine Device Queues (VMDq)
Y
PCI-SIG* SR-IOV Capable
Y
On-chip QoS and Traffic Management
Y
Intel Flexible Port Partitioning
Y
Speed & slot width
8.0 GT/s, x4 Lane
Low halogen options available
N
Intelligent Offloads
Y
iWARP/RDMA
N
Fiber Channel over Ethernet
Y
Intel Data Direct I/O Technology
Y
Intel Virtualization Technology for Connectivity (VT-c)
Simplify Virtualization and Reduce Overheads Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Y
Interface type
PCIe v3.0 (8.0 GT/s)
Storage Over Ethernet
iSCSI, FCoE, NFS
Conflict-Free
"Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries.
Y
Launch date
Q1'16
Market segment
LAD
Network interface card cable medium
Copper
Network interface card type
Server
Product brief URL
http://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x550-brief.html
Product type
The sub-category of the product.
Network Interface Card
Status
Launched
Desktop Management Interface (DMI) version
2.0
Last change
64826838
Ethernet adapter ARK ID
88209
Harmonized System (HS) code
8517620090
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
G135872
Controller type
Intel® Ethernet Controller X550
Cabling type
RJ45 Category 6 up to 55m; Category 6A up to 100m
Bracket height
Low-Profile (LP) / Full-Height (FH)
Product family
Intel 10 Gigabit server adapter
Product series
500 Series Network Adapters (up to 10GbE)
